MLM-240M-150-ZPPH-ECO - Datasheet
ECO
Category Information

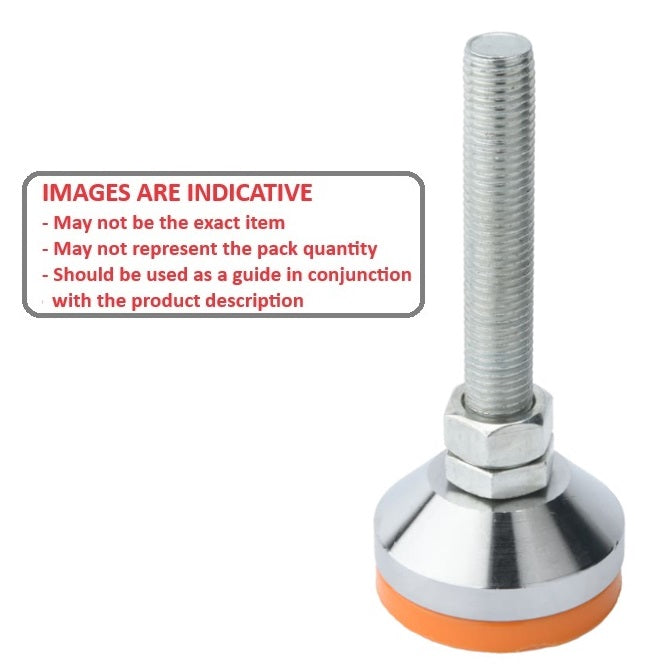

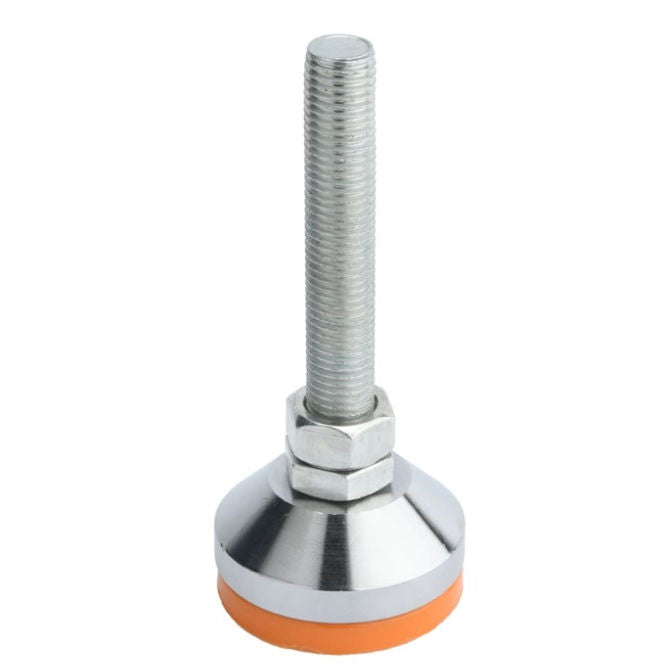

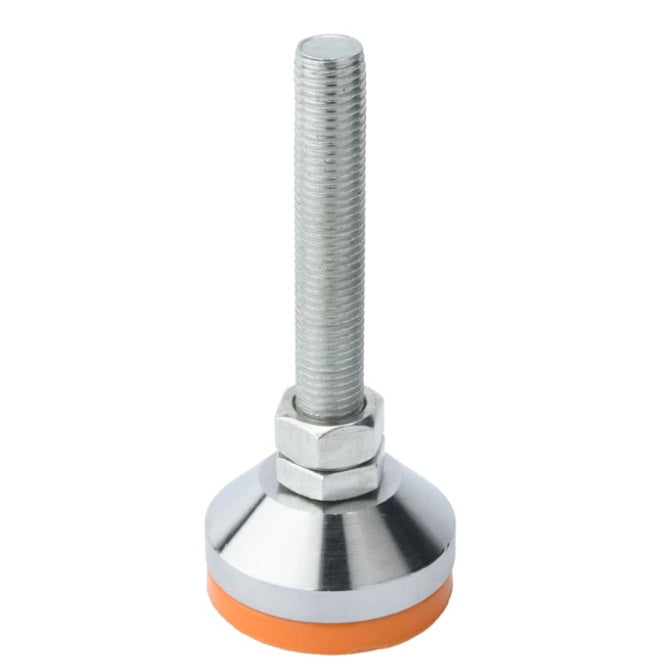

Mounts - Levelling Studded - Economy - PVC PaddedPVC Padded Economy Levelling Studded Mounts. Levelling adjusters. Protects general metalworking processes equipment including punch presses, milling machines, lathes, mixers, injection moulding machines, grinders from shock and vibration.
- An expanded range may be available on special order. Please enquire.
Product Data

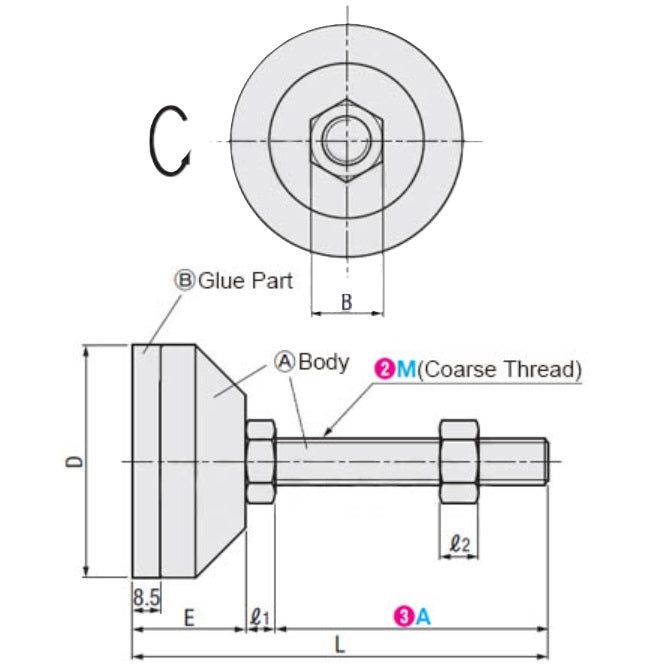

- Thread Size (A) : M24 (24x3mm)
- Base Diameter (D) 80.0 mm
- Foot Height (C) 45.5 mm
- Thread Length (F) 150.0 mm
- Base Height (E) 37.0 mm
- Overall Height 195.5 mm
- Load Rating 98.00 Kg
- Pad Thickness 9 mm
- Pad Material Polyvinyl Chloride
- Material Steel - Zinc
Product Compliance and Data
Additional Resources
Cross References
- Misumi® C-CPVC80-24-150
- CCPVC8024150
