MLM-240M-180-NYCZRP - Datasheet
MBA
Category Information

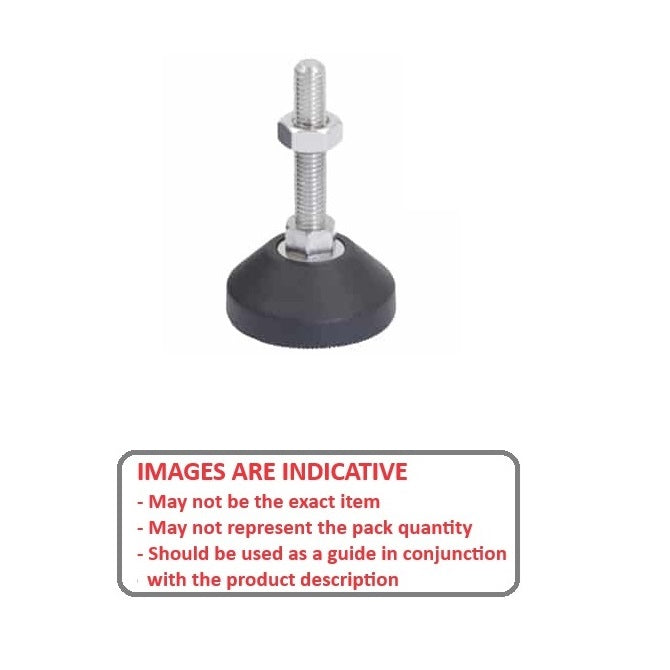

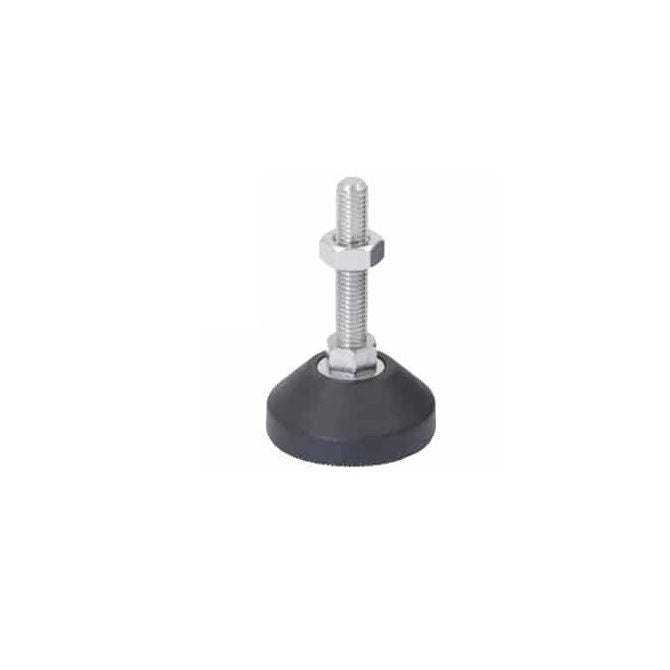

Mounts - Levelling Studded - Light Duty - Nylon - No Lag HolesNo Lag Holes Nylon Light Duty Levelling Studded Mounts. Adjusters.
- An expanded range may be available on special order. Please enquire.
Product Data

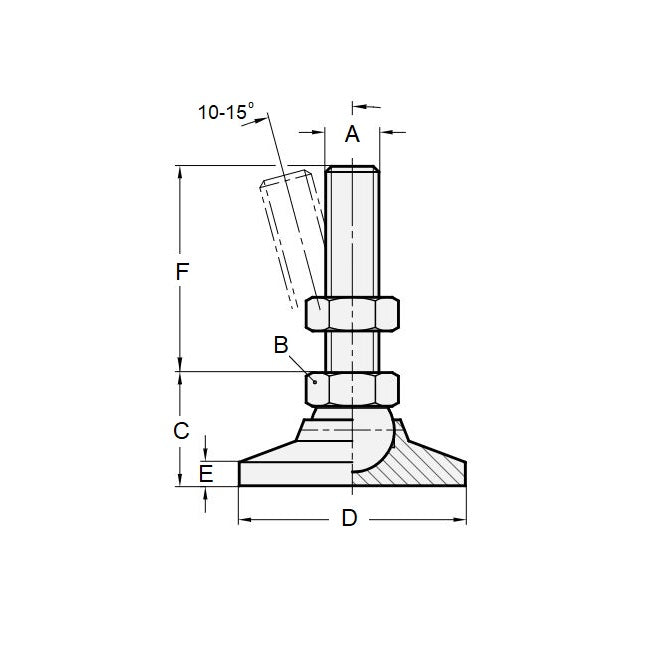

- Thread Size (A) : M24 (24x3mm)
- Base Diameter (D)
100.00
mm
(Equiv. 3.937 in.) - Foot Height (C)
50.00
mm
(Equiv. 1.969 in.) - Thread Length (F) 180.00 mm
- Overall Height 230.0 mm
- Load Rating 400 Kg
- Finish Zinc Plated
- Synthetic Rubber
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CFBR100-24-180
- CCFBR10024180
