NT200M-HH-S6 - Datasheet
Brighton Best
Category Information

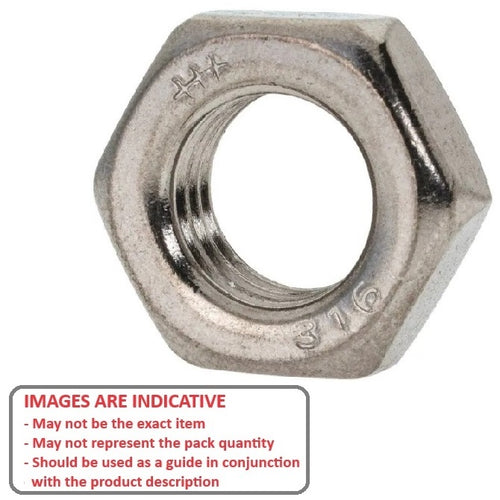

Nuts - Hexagonal - Half - Stainless SteelStainless Steel Half Hexagonal Nuts. UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : M20 (20x2.5mm)
- Thickness (H)
9.1
mm
(Equiv. 0.358 in.) - Across Flats (A/F)
30.0
mm
(Equiv. 1.181 in.) - Type Half Nut
- Pitch 2.500 mm
- Threads Per Inch 10.16 TPI
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 562058
- 93935A365
