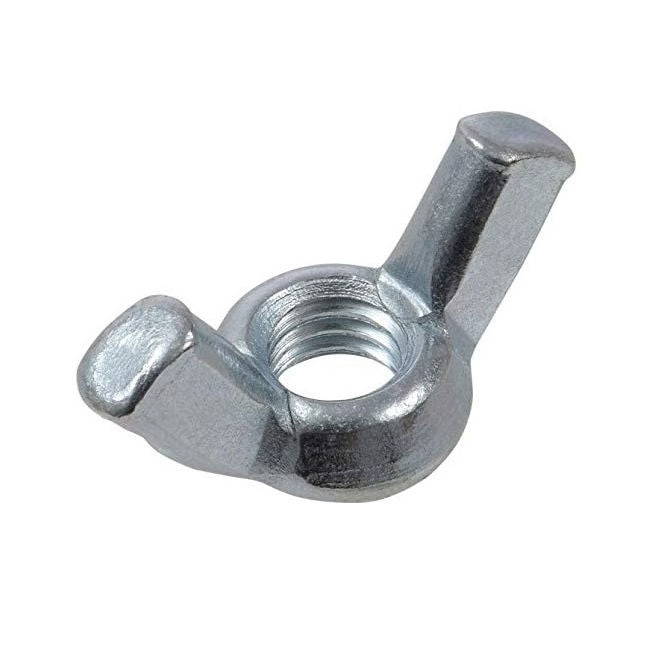

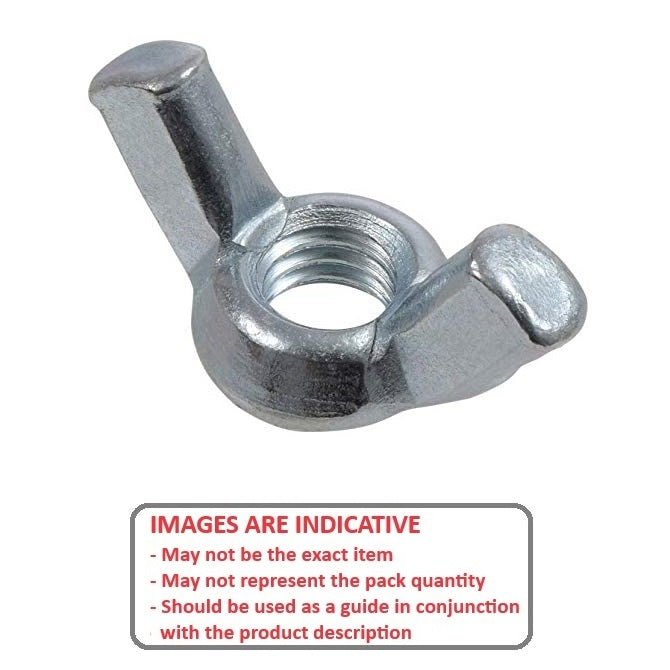

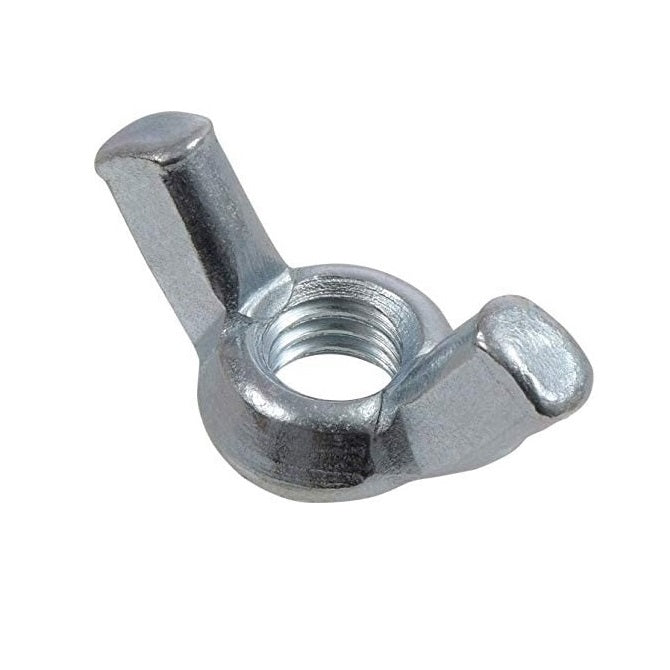

NT200M-WG-S4 - Datasheet

Brighton Best

Product Data

• Thread Size : M20 (20x2.5mm)
• Body Height (D) 12.0 mm
• Wing Width 66.0 mm
• Overall Height (C) 30.5 mm
• 2.500 mm / 10.16 TPI
• Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Countersunk Head Screws

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Brighton Best V79200
