WEB-5RS - Datasheet

MBA

Category Information

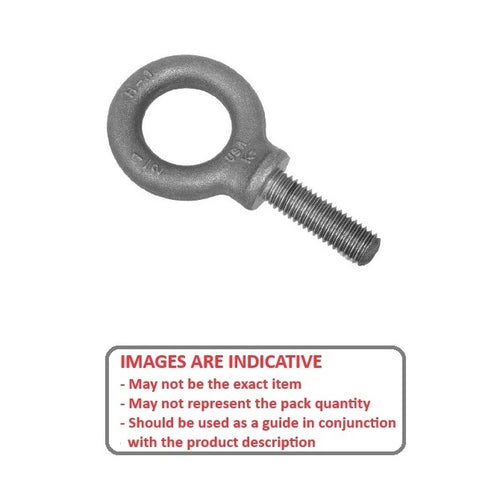

Eye Bolts - Threaded Shank - Shouldered - Carbon Steel - Zinc Plated

Zinc Plated Carbon Steel Shouldered Threaded Shank Eye Bolts. Forged zinc plated carbon steel.

  • Fastener with a loop or eye at one end, and a fully threaded shank on the other.
  • Used to attach ropes or cables to secure or lift objects by screwing the threaded end into a structure, with the loop providing an anchor point.
  • Regular eye bolts for vertical lifting and shoulder eye bolts that can handle angled loads.
  • Zinc plated carbon steel.
  • Should not be used for angular lifts greater than 45o. Safety swivel hoist rings are recommended for such applications.

Product Data

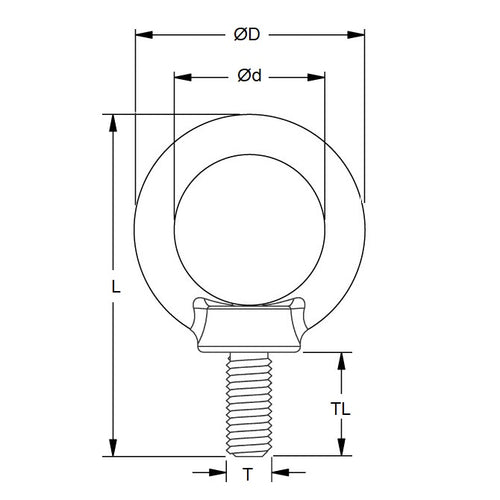

  • Thread Size : M20 (20x2.5mm)
  • Shank Length 30.000 mm
  • Eye Inside Diameter 40.000 mm
  • Rated Capacity 1223 Kg
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 3170T46
