MLM-200M-200-NYCZNE - Datasheet
MBA
Category Information

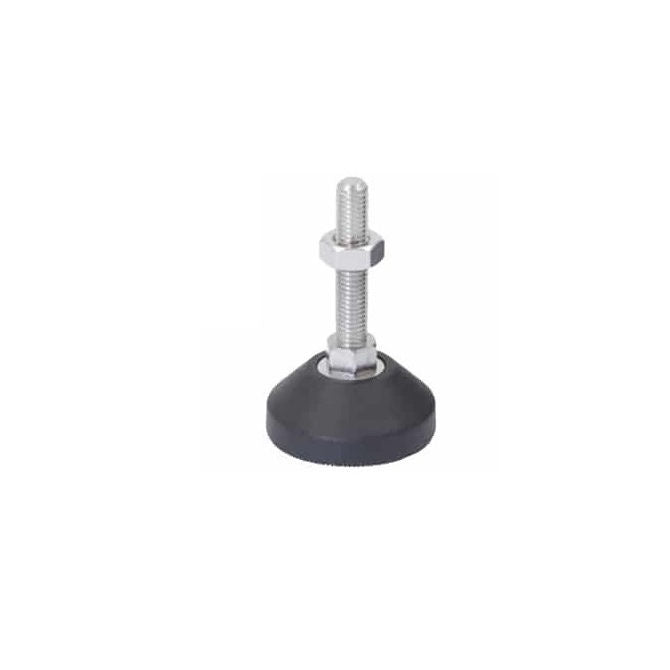

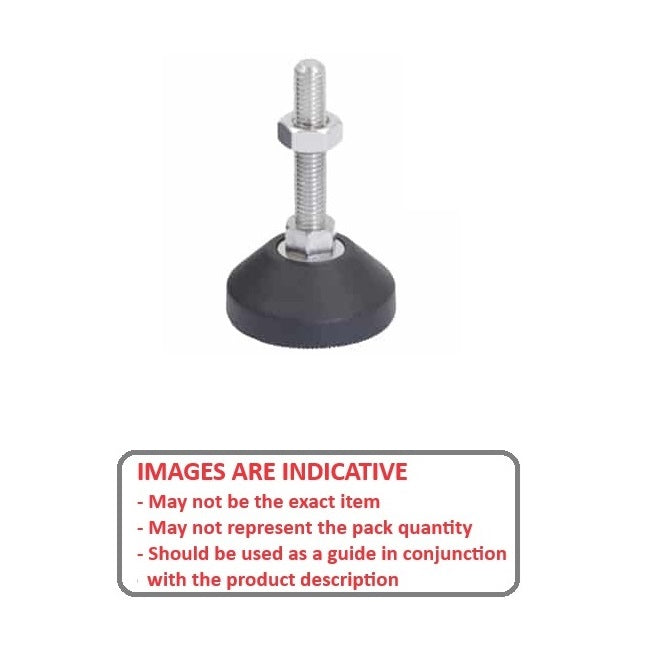

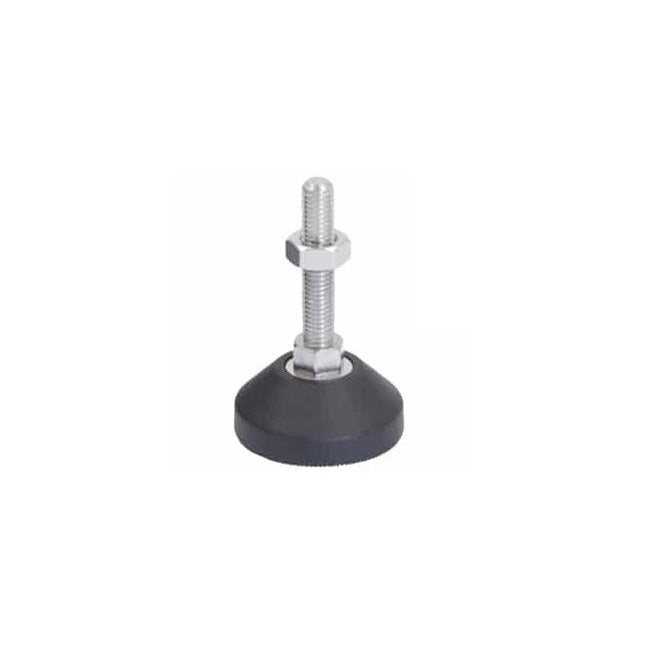

Mounts - Levelling Studded - Light Duty - Nylon - No Lag HolesNo Lag Holes Nylon Light Duty Levelling Studded Mounts. Adjusters.
- An expanded range may be available on special order. Please enquire.

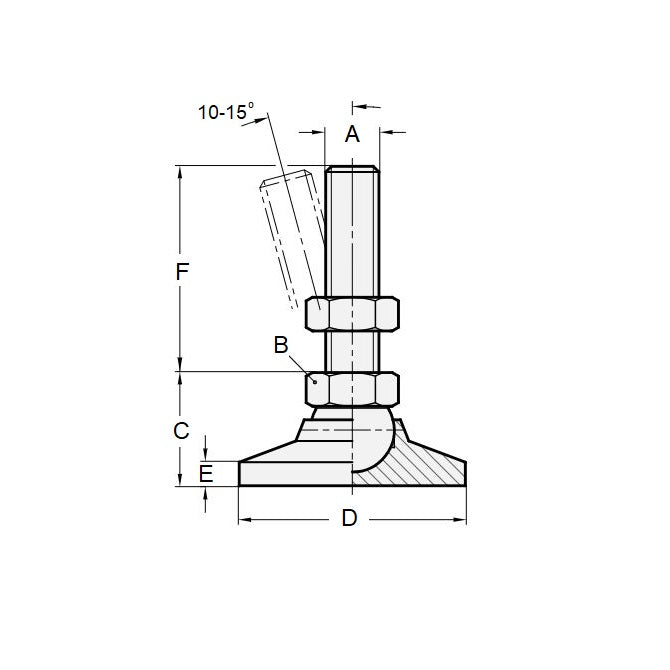

Product Data
- Thread Size (A) : M20 (20x2.5mm)
- Base Diameter (D)
90.00
mm
(Equiv. 3.543 in.) - Foot Height (C)
45.00
mm
(Equiv. 1.772 in.) - Thread Length (F) 200.00 mm
- Base Height (E) 16.00 mm
- Overall Height 245.0 mm
- Load Rating 350 Kg
- Finish Zinc Plated
- Neoprene Rubber
- 30.00
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CFBR90-20-200
- CCFBR9020200
