Miniature Bearings Australia
MLM-200M-200-CZRP - Datasheet
MBA
Category Information

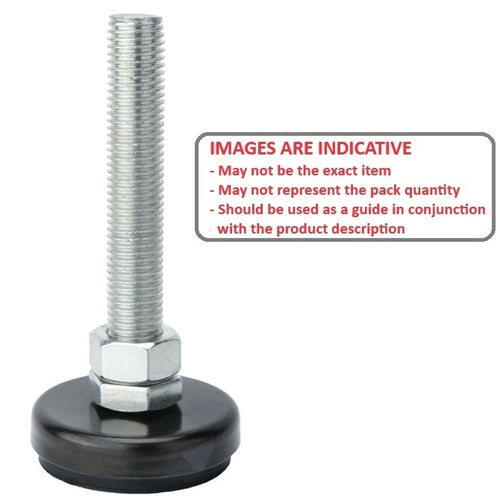

Mounts - Levelling Studded - Swivel - Black Chromate - Rubber PaddedRubber Padded Black Chromate Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data

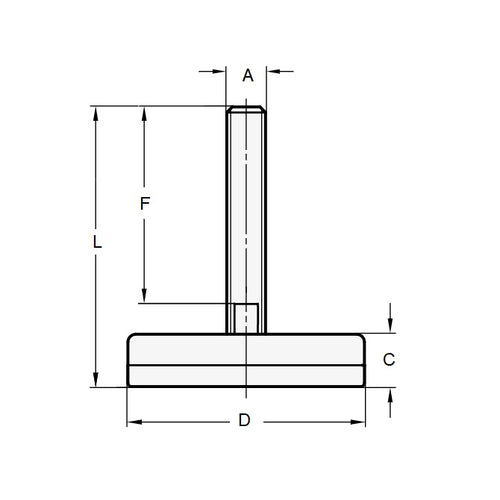

- Thread Size (A) : M20 (20x2.5mm)
- Base Diameter (D)
80.00
mm
(Equiv. 3.15 in.) - Foot Height (C)
32.00
mm
(Equiv. 1.26 in.) - Thread Length (F) 200.00 mm
- Base Height (E) 17.00 mm
- Overall Height 232.0 mm
- Load Rating 450 Kg
- Finish Zinc Plated
- Pad Material Rubber
- Hex Flats (B) 30.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CFJFN100-20-200
- Misumi C-CFJFN20-200
- Misumi C-CFJFN60-20-200
- Misumi C-CFJFN80-20-200
- Misumi C-CFJFNV100-20-200
- Misumi C-CFJFNV20-200
- Misumi C-CFJFNV80-20-200
- Misumi C-CFJSN100-20-200
- Misumi C-CFJSN80-20-200
- CCFJFN6020200
- CCFJFN10020200
- CCFJFNV10020200
- CCFJFNV8020200
- CCFJFNV20200
- CCFJFN20200
- CCFJSN8020200
- CCFJSN10020200
- CCFJFN8020200
