MLM-200M-120-ZPPH-ECO - Datasheet
ECO
Category Information

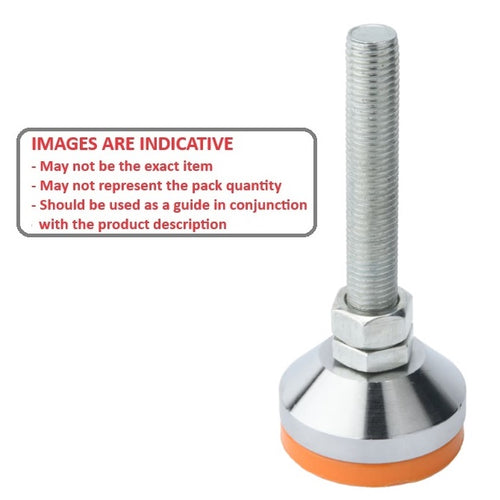

Mounts - Levelling Studded - Economy - PVC PaddedPVC Padded Economy Levelling Studded Mounts. Levelling adjusters. Protects general metalworking processes equipment including punch presses, milling machines, lathes, mixers, injection moulding machines, grinders from shock and vibration.
- An expanded range may be available on special order. Please enquire.

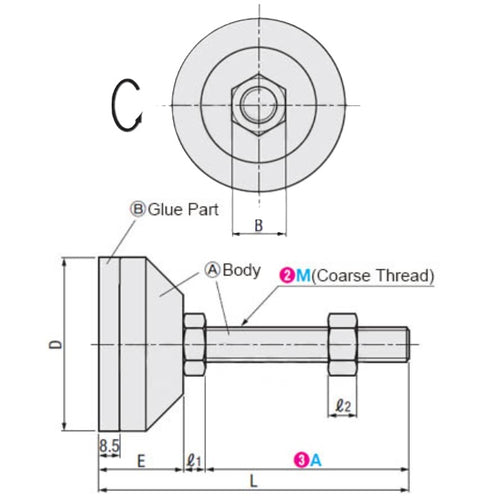

Product Data
- Thread Size (A) : M20 (20x2.5mm)
- Base Diameter (D)
80.0
mm
(Equiv. 3.15 in.) - Foot Height (C)
43.5
mm
(Equiv. 1.713 in.) - Thread Length (F) 120.0 mm
- Base Height (E) 35.0 mm
- Overall Height 163.5 mm
- Load Rating 78.40 Kg
- Pad Thickness 9 mm
- Pad Material Polyvinyl Chloride
- Hex Flats (B) 30 mm
- Material Steel - Zinc
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CPVC80-20-120
- CCPVC8020120
