MLM-200M-150-ZRP-ECO - Datasheet
ECO
Category Information

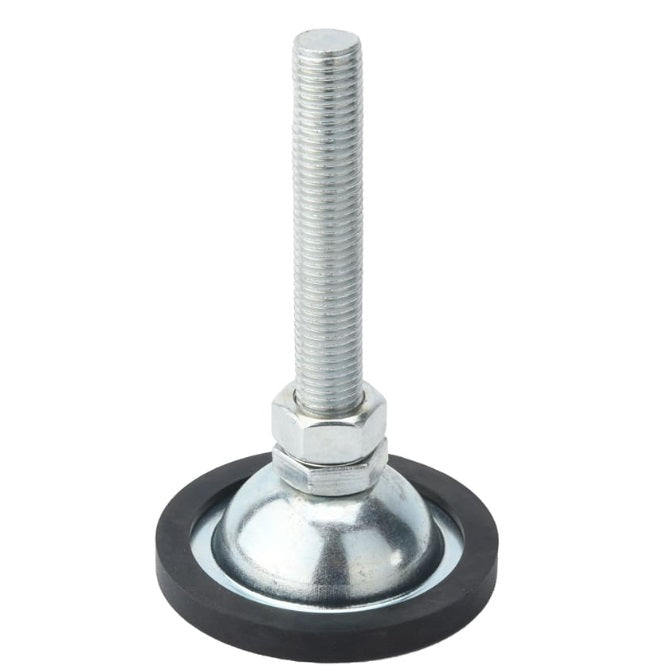

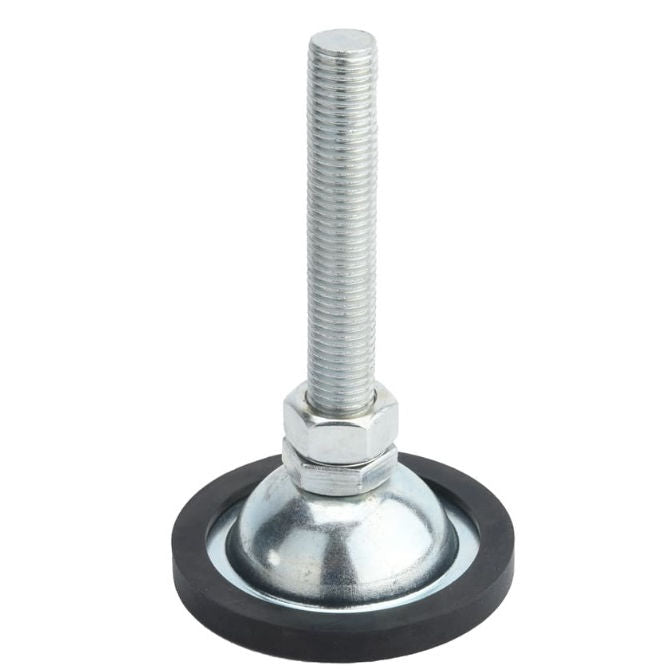

Mounts - Levelling Studded - Economy - Rubber PaddedRubber Padded Economy Levelling Studded Mounts. Levelling adjusters. Protects general metalworking processes equipment including punch presses, milling machines, lathes, mixers, injection moulding machines, grinders from shock and vibration.
- An expanded range may be available on special order. Please enquire.

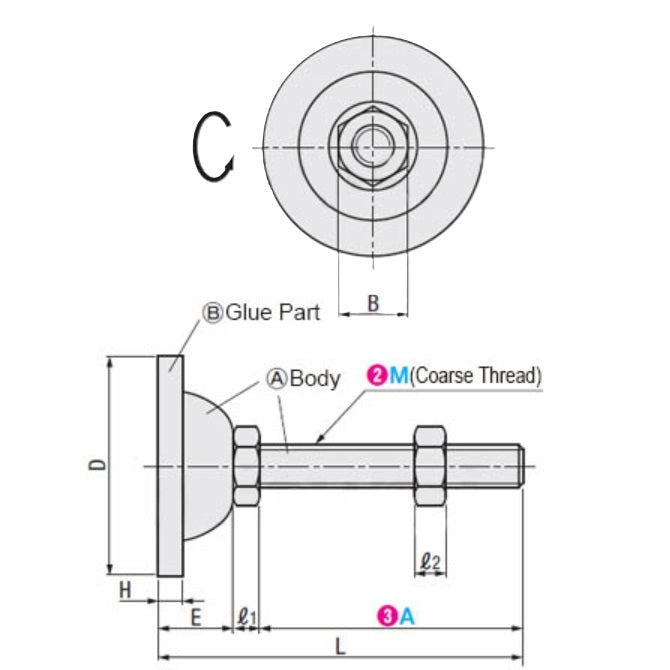

Product Data
- Thread Size (A) : M20 (20x2.5mm)
- Base Diameter (D)
80.0
mm
(Equiv. 3.15 in.) - Foot Height (C)
38.0
mm
(Equiv. 1.496 in.) - Thread Length (F) 150.0 mm
- Base Height (E) 30.0 mm
- Overall Height 188.0 mm
- Load Rating 65.66 Kg
- Pad Thickness 8 mm
- Pad Material Rubber
- Hex Flats (B) 30 mm
- Material Steel - Zinc
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CFJGN20-150
- CCFJGN20150
