MLM-200M-200-NY-S4 - Datasheet
MBA
Category Information

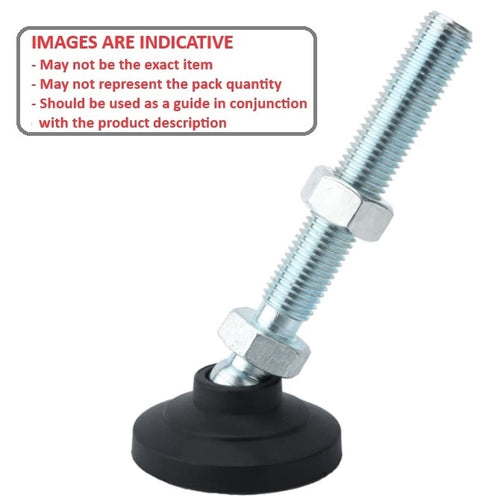

Mounts - Levelling Studded - Light Duty - Nylon - No Lag HolesNo Lag Holes Nylon Light Duty Levelling Studded Mounts. Adjusters.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M20 (20x2.5mm)
- Base Diameter (D) 60.00 mm
- Foot Height (C) 36.00 mm
- Thread Length (F) 200.00 mm
- Base Height (E) 7.50 mm
- Overall Height 236.0 mm
- Load Rating 150 Kg
- 30.00
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Misumi® C-CAJPDS20-200
- CCAJPDS20200
