MLM-200M-200-NYCZ - Datasheet
MBA
Category Information

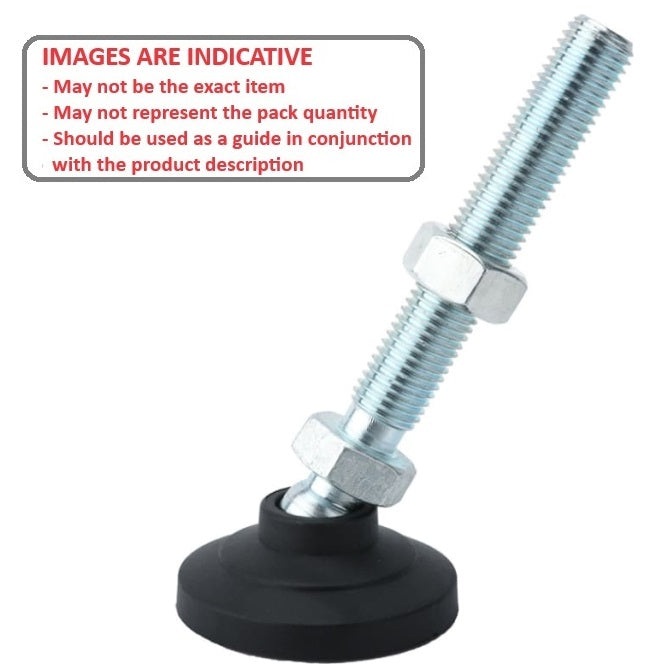

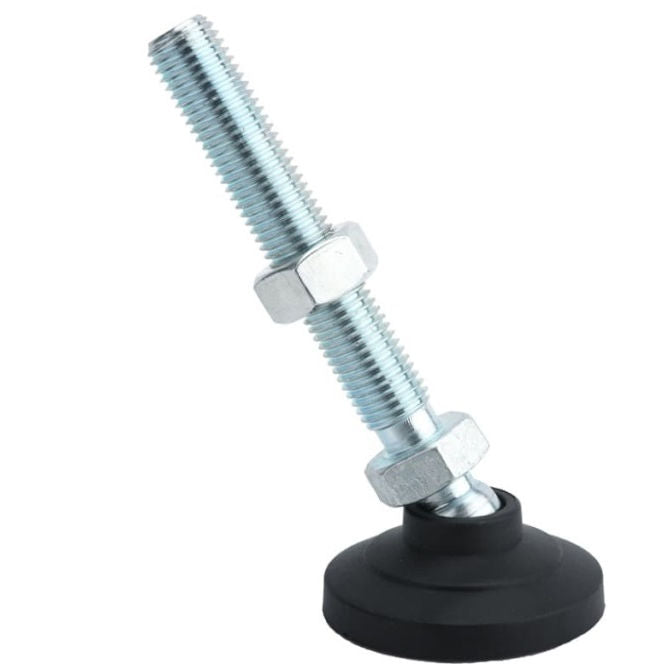

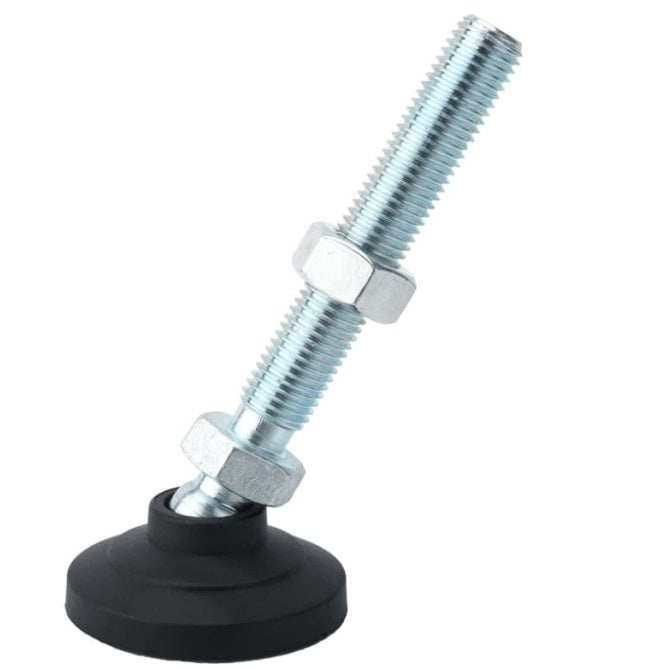

Mounts - Levelling Studded - Light Duty - Nylon - No Lag HolesNo Lag Holes Nylon Light Duty Levelling Studded Mounts. Adjusters.
- An expanded range may be available on special order. Please enquire.
Product Data

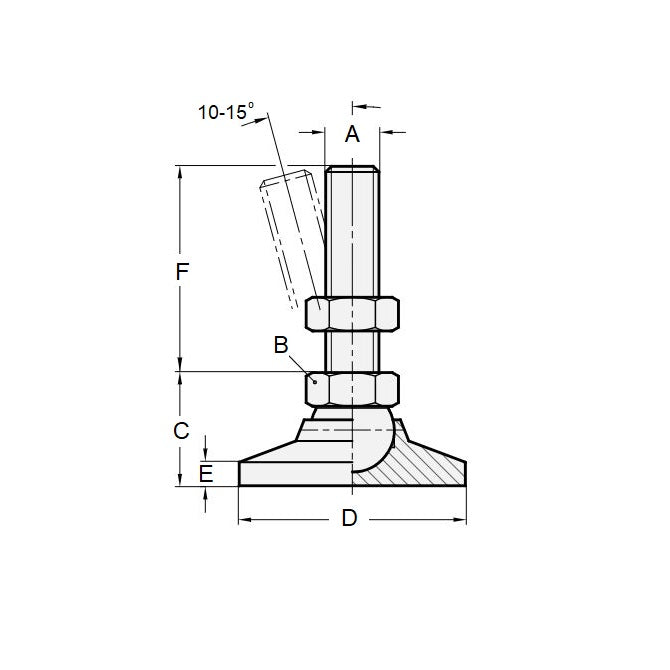

- Thread Size (A) : M20 (20x2.5mm)
- Base Diameter (D)
60.00
mm
(Equiv. 2.362 in.) - Foot Height (C)
36.00
mm
(Equiv. 1.417 in.) - Thread Length (F) 200.00 mm
- Base Height (E) 7.50 mm
- Overall Height 236.0 mm
- Load Rating 150 Kg
- Finish Zinc Plated
- 30.00
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CAJPD20-200
- CCAJPD20200
