MLM-200M-100-CZRP - Datasheet
MBA
Category Information

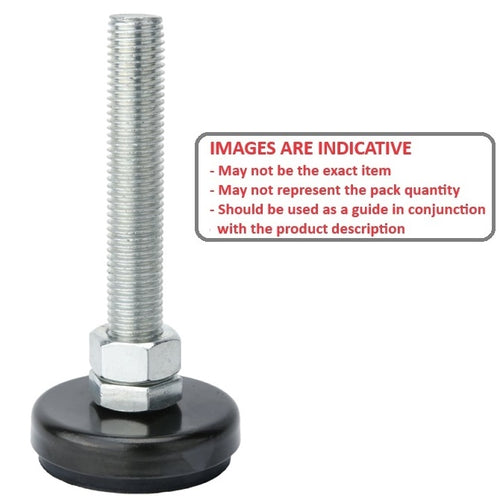

Mounts - Levelling Studded - Swivel - Black Chromate - Rubber PaddedRubber Padded Black Chromate Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data

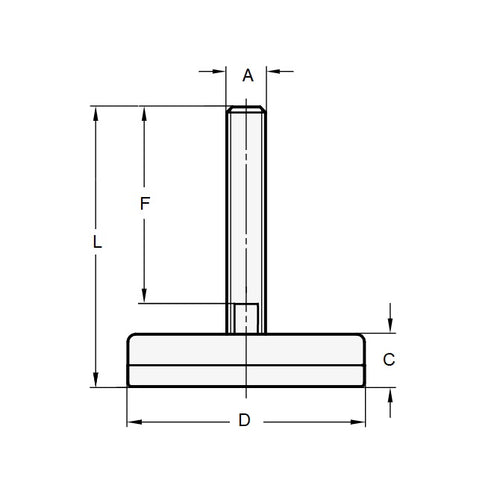

- Thread Size (A) : M20 (20x2.5mm)
- Base Diameter (D) 60.00 mm
- Foot Height (C) 30.00 mm
- Thread Length (F) 100.00 mm
- Base Height (E) 17.00 mm
- Overall Height 130.0 mm
- Load Rating 450 Kg
- Finish Zinc Plated
- Pad Material Rubber
- Hex Flats (B) 30.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi® C-CFJFN20-100
- Misumi® C-CFJFN60-20-100
- Misumi® C-CFJSN20-100
- CCFJFN6020100
- CCFJSN20100
- CCFJFN20100
