MLM-200M-200-S4PP-ECO - Datasheet
ECO
Category Information

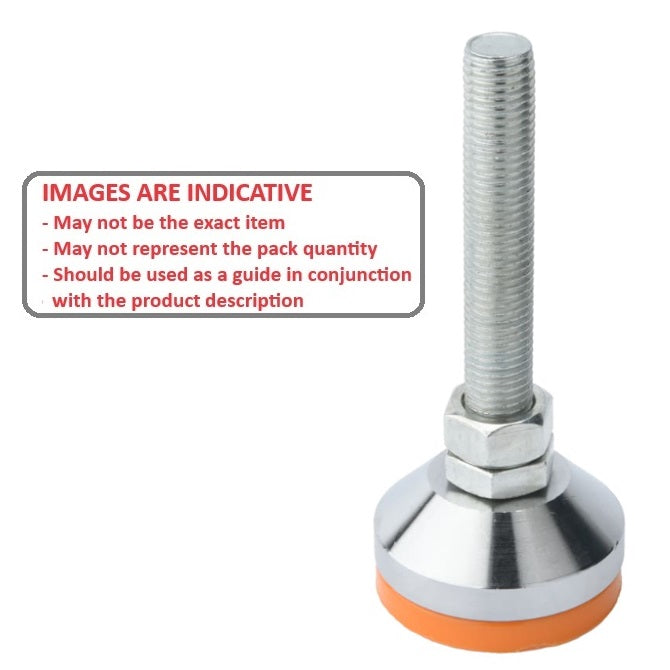

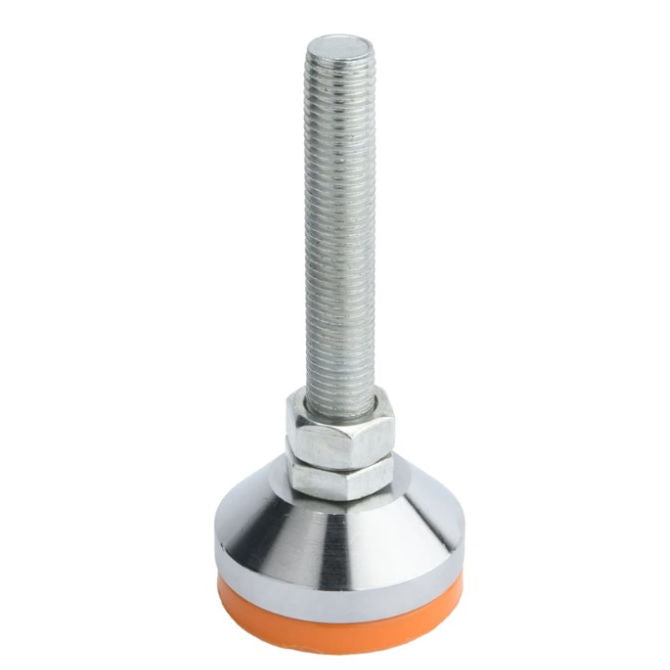

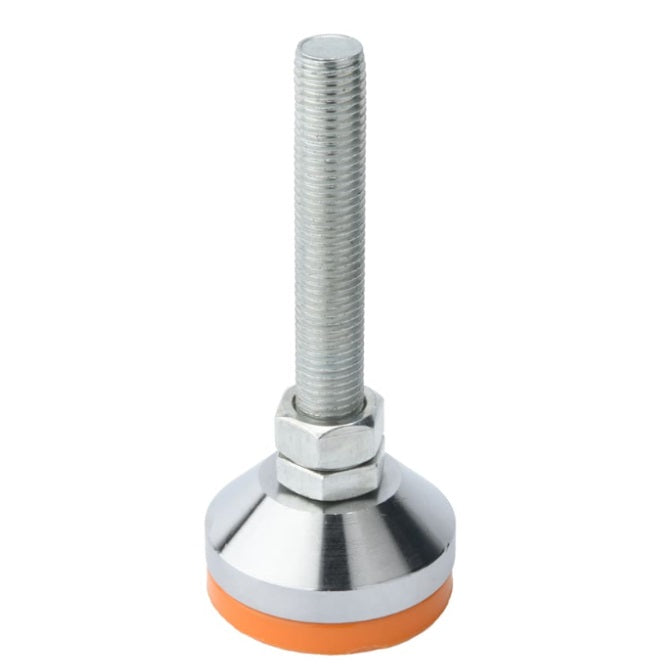

Mounts - Levelling Studded - Economy - PVC PaddedPVC Padded Economy Levelling Studded Mounts. Levelling adjusters. Protects general metalworking processes equipment including punch presses, milling machines, lathes, mixers, injection moulding machines, grinders from shock and vibration.
- An expanded range may be available on special order. Please enquire.
Product Data

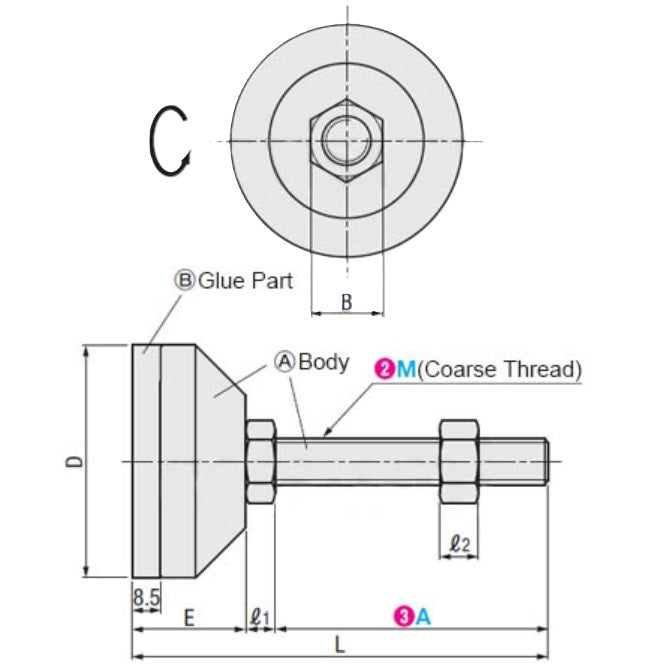

- Thread Size (A) : M20 (20x2.5mm)
- Base Diameter (D)
60.0
mm
(Equiv. 2.362 in.) - Foot Height (C)
43.0
mm
(Equiv. 1.693 in.) - Thread Length (F) 200.0 mm
- Base Height (E) 34.5 mm
- Overall Height 243.0 mm
- Load Rating 78.40 Kg
- Pad Thickness 9 mm
- Pad Material Polyvinyl Chloride
- Hex Flats (B) 30 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CPVC60-20-200
- CCPVC6020200
