AT200M-1000-S4 - Datasheet
SSA
Category Information

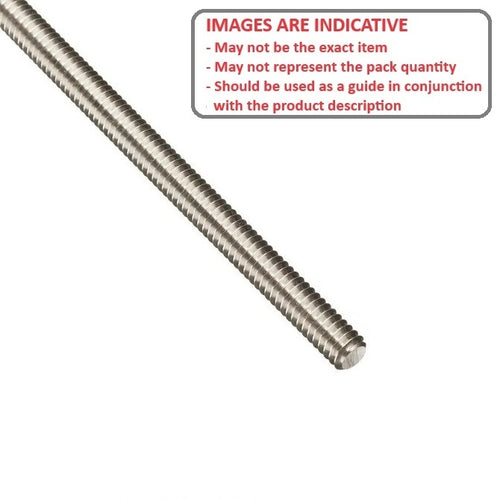

Threaded Rod - Allthread - Stainless Steel - 304304 Stainless Steel Allthread Threaded Rod. 303 and 304 grade stainless. UNC - UNF - METRIC
- Allthread also known as threaded rod and booker rod is available in many different materials.
- Can be used in various applications for hanging, stabilizing, mounting, and fastening. They are often cut to specific lengths and used with nuts and other fittings to create custom-length bolts or anchors.
Product Data

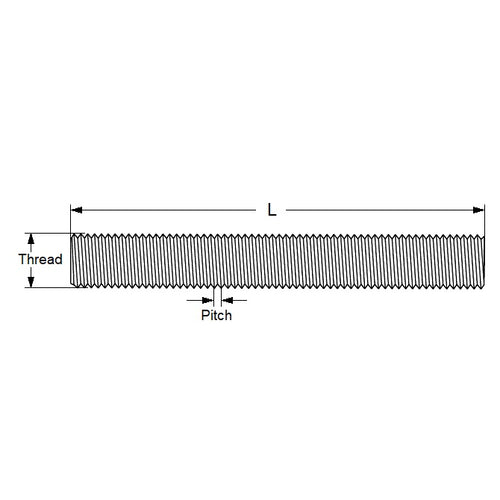

- Thread Size : M20 (20x2.5mm)
- Pitch in mm / Threads Per Inch 2.500 mm / 10.16 TPI
- Length
1000
mm
(Equiv. 39.37 in.) - Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 90024A140
- SIM-20
- SIM20
