MLM-200M-120-NYCZRP - Datasheet
MBA
Category Information

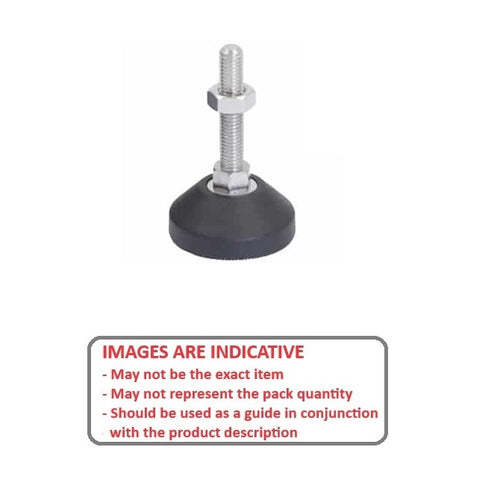

Mounts - Levelling Studded - Light Duty - Nylon - No Lag HolesNo Lag Holes Nylon Light Duty Levelling Studded Mounts. Adjusters.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M20 (20x2.5mm)
- Base Diameter (D)
100.00
mm
(Equiv. 3.937 in.) - Foot Height (C)
48.00
mm
(Equiv. 1.89 in.) - Thread Length (F) 120.00 mm
- Overall Height 168.0 mm
- Load Rating 350 Kg
- Finish Zinc Plated
- Synthetic Rubber
- 30.00
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-CFBR100-20-120
- CCFBR10020120
