SC026M-006-C-SK-C - Datasheet
MBA
Category Information

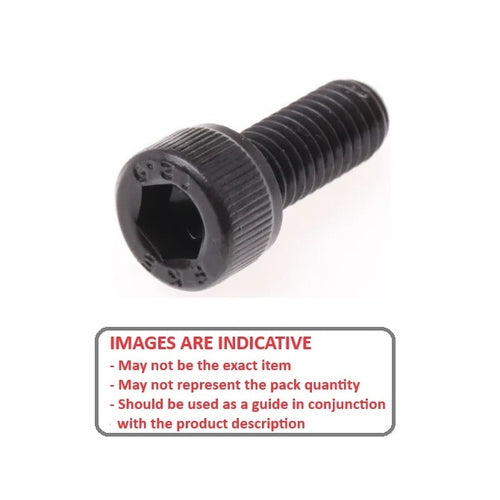

Screws - Socket Cap - Alloy Steel - Black OxideBlack Oxide Alloy Steel Socket Cap Screws. UNC - UNF - METRIC - Alloy Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : M2.6 (2.6x0.45mm)
- Thread Length (L)
6
mm
(Equiv. 0.236 in.) - Material High Tensile Steel / Black Oxide
- Head Length (B Max.) 2.5 mm
- Head Diameter (A Max.) 4.4 mm
- Drive Depth (E) 1.10 mm
- Shank Diameter (C) 2.46 - 2.60 mm
- Hex Key (D) 2.00 mm
- Pitch 0.450 mm
- Threads Per Inch 56.44 TPI
- Min thread Length 6 mm
- Material High Tensile Steel Black Oxide
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 91290A073
- MicroFast SCM2606
