Miniature Bearings Australia
SC025M-008-P-SL-S3 - Datasheet
MBA
Category Information

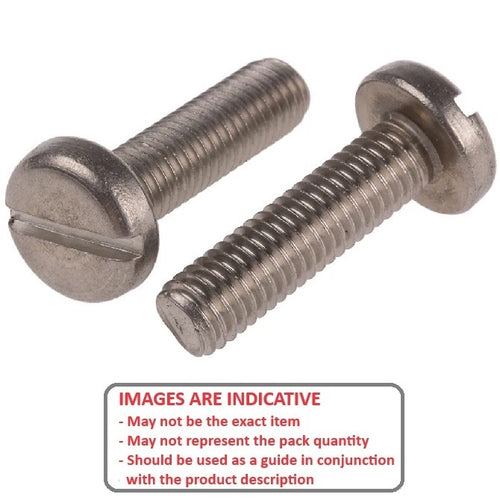

Screws - Pan Head - Slotted - 304 Stainless304 Stainless Slotted Pan Head Screws. Metric Only
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : M2.5 (2.5x0.45mm)
- Thread Length (L)
8
mm
(Equiv. 0.315 in.) - Material 303 Stainless
- Max Head Diameter 5.0 mm
- Max Head Height 2.0 mm
- Pitch 0.450 mm
- Threads Per Inch 56.44 TPI
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 91200A224
- Small Parts MMX-25-8P
- MD0085MXO025X008
- MMX258P
