SC025M-006-P-PH-CZ - Datasheet
MBA
Category Information

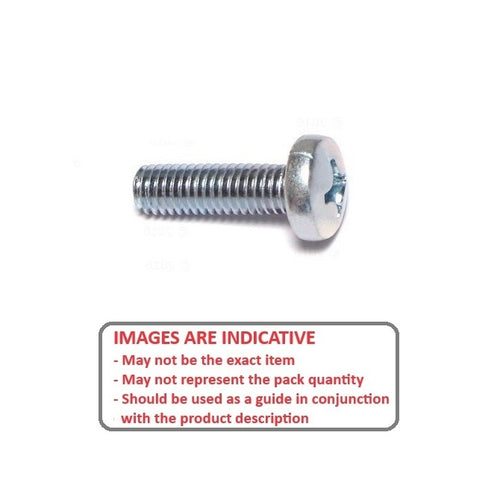

Screws - Pan Head - Phillips - SteelSteel Phillips Pan Head Screws. Metal Thread Screws UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
- Thread Size (C) : M2.5 (2.5x0.45mm)
- Thread Length (L)
6
mm
(Equiv. 0.236 in.) - Material Zinc Plated Steel
- Max Head Diameter 5.0 mm
- Max Head Height 2.0 mm
- Pitch 0.450 mm
- Threads Per Inch 56.44 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92005A066
- Hitech MSPPZP256
