SC025M-006-PJ-PH-S4 - Datasheet
MBA
Category Information

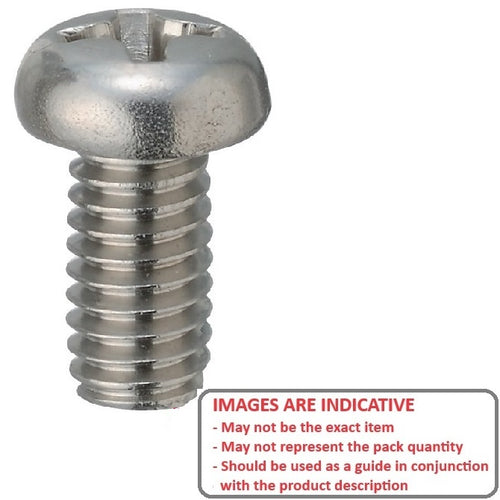

Screws - Pan Head - Phillips - 303-304 Stainless303-304 Stainless Phillips Pan Head Screws. Metal Thread Screws UNC - UNF - METRIC - Pan, cheese, fillister and round head.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
- Thread Size (C) : M2.5 (2.5x0.45mm)
- Thread Length (L)
6
mm
(Equiv. 0.236 in.) - Material 304 Stainless
- Max Head Diameter 4.5 mm
- Max Head Height 1.7 mm
- Pitch 0.450 mm
- Threads Per Inch 56.44 TPI
- Standard JIS B 1111
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi NKJ2.5-6
- NKJ256
