SK025M-010-O-SL-S4 - Datasheet
MBA
Category Information

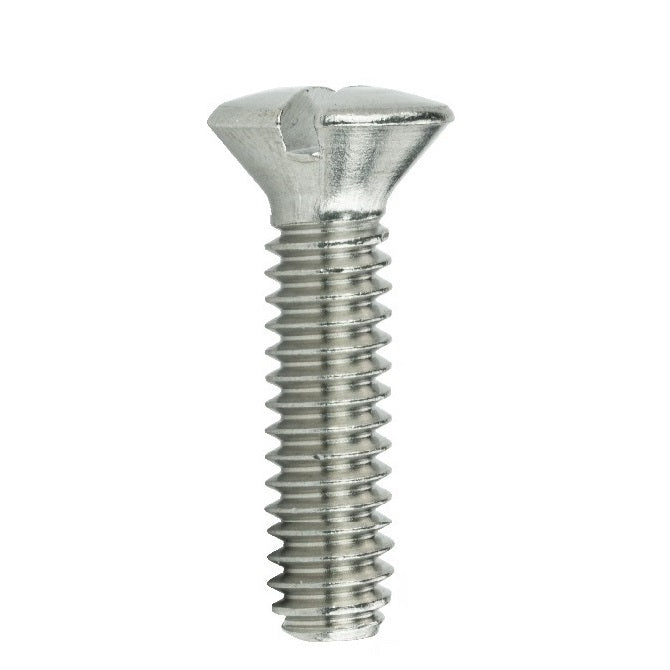

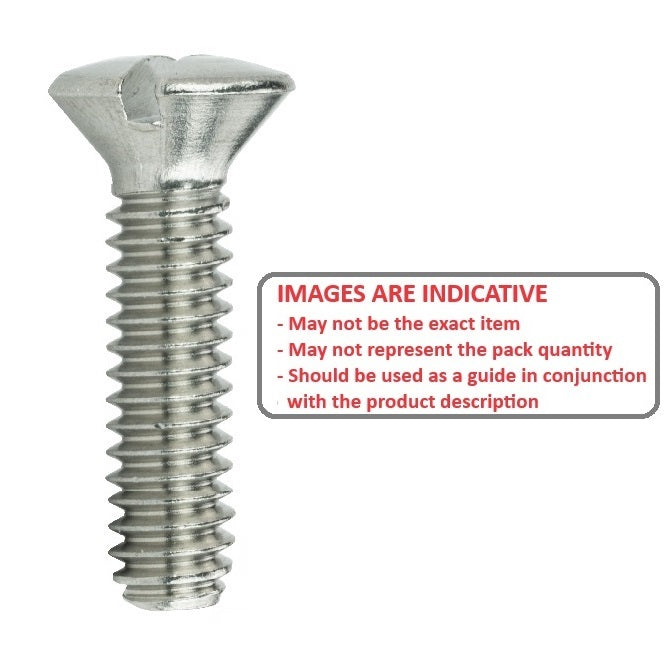

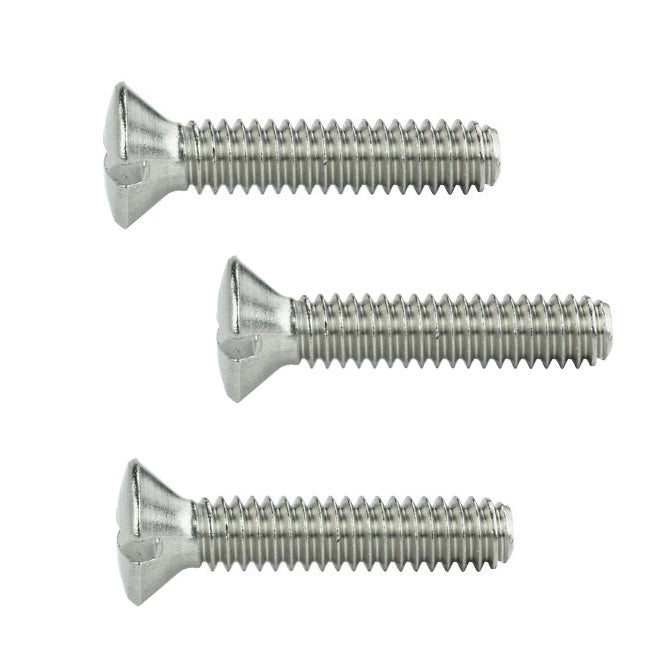

Screws - Countersunk - Oval Top - Slotted 304 StainlessSlotted 304 Stainless Oval Top Countersunk Screws. Flat Head Countersunk. Metric only.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

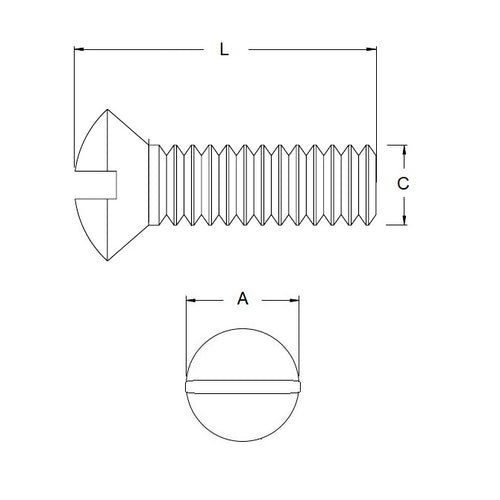

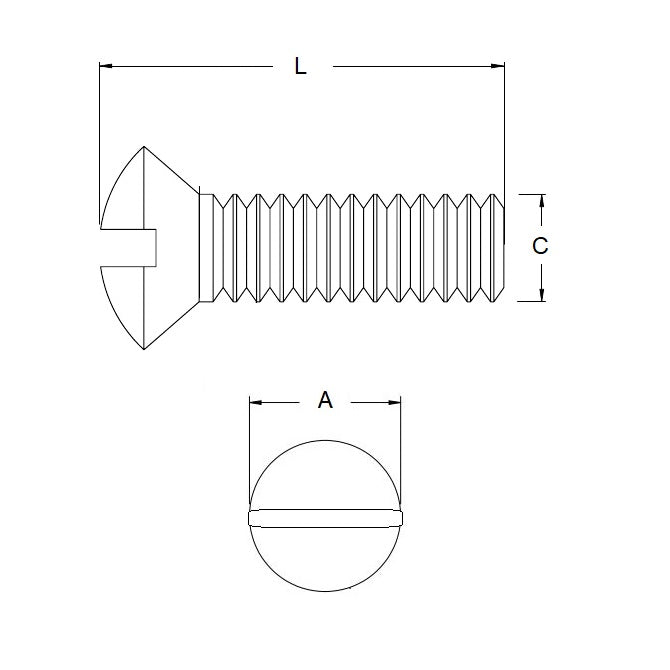

- Thread Size (C) : M2.5 (2.5x0.45mm)
- Overall Length (L)
10
mm
(Equiv. 0.394 in.) - Material 304 Stainless
- Max Head Diameter 4.70 mm
- Max Head Height 2.45 mm
- Type Oval Countersunk / Slotted
- Pitch 0.450 mm
- Threads Per Inch 56.44 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- MD0964MXO025X010
