SC020M-004-ULH-SKT-S4 - Datasheet
MBA
Category Information

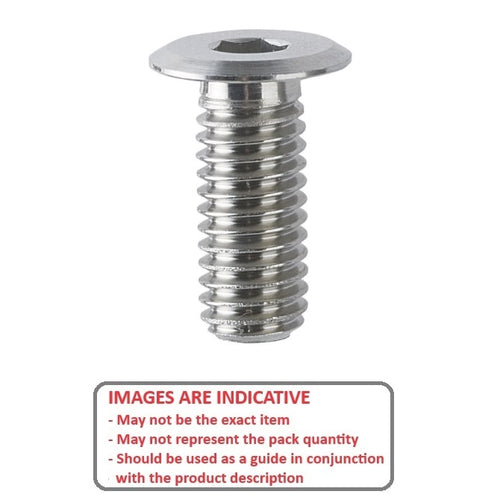

Screws - Ultra Low Head - Socket - Stainless SteelStainless Steel Socket Ultra Low Head Screws. Metric 304 Stainless
- Note. Hex key size may. The size listed is the usual and minimum size.
Product Data
- Thread Size (C) : M2 (2x0.4mm)
- Thread Length (L)
4
mm
+ 0.00 / - 0.10
(Equiv. 0.157 in.) - Material 304 Stainless
- Max Head Dia. 4.0 mm
- Max Head Height 0.5 mm
- Usual Hex Key (D) 1.30 mm
- Type Ultra Low Head Socket
- Pitch 0.40 mm
- Threads Per Inch 63.50 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi CBSTSR2-4
- CBSTSR24
