NT180M-NI-S6 - Datasheet
Brighton Best
Category Information

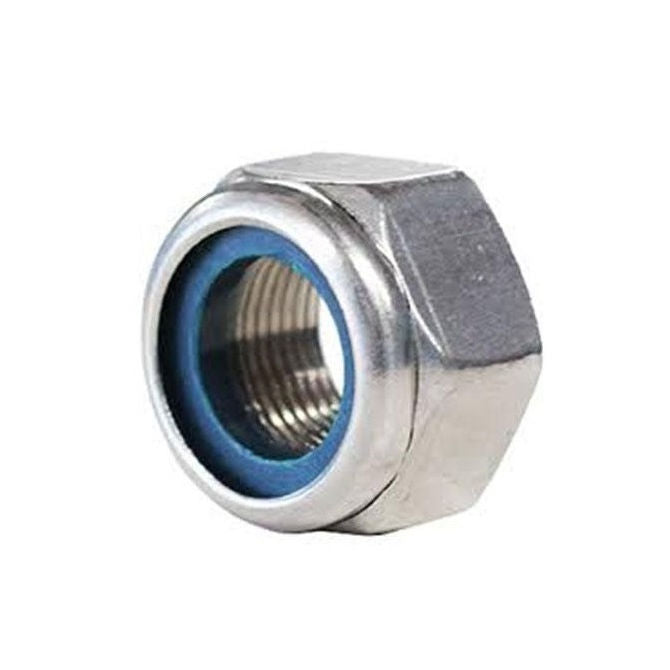

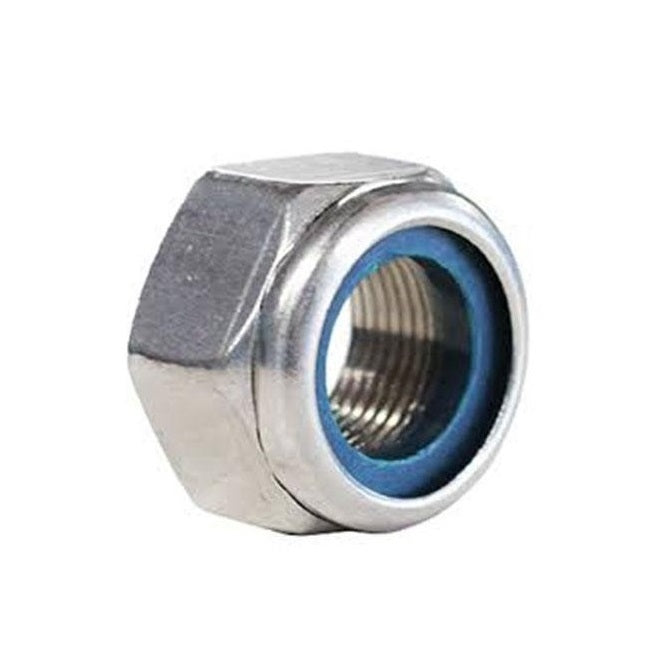

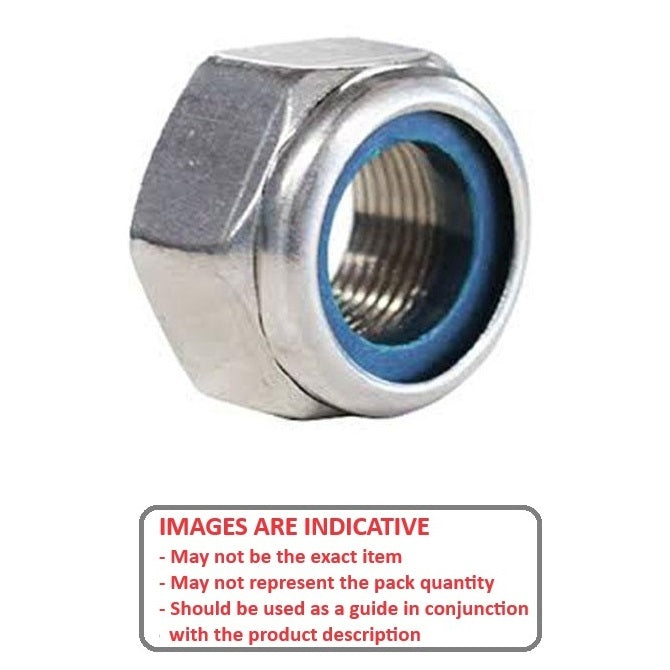

Nuts - Hexagonal - Nylon Insert - Stainless SteelStainless Steel Nylon Insert Hexagonal Nuts. Nylon Insert for Locking. NylocTM and other brands.
- An expanded range may be available on special order. Please enquire.
- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : M18 (18x2.5mm)
- Thickness (H)
18.5
mm
(Equiv. 0.728 in.) - Across Flats (A/F)
27.0
mm
(Equiv. 1.063 in.) - 18.5
- Type Standard
- Pitch 2.500 mm
- Threads Per Inch 10.16 TPI
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 563090
- 94205A315
