KM34 - Datasheet

MBA

Category Information

Nuts - Bearing Locknuts - Right Hand Thread - Standard AN-KM Series

Standard AN-KM Series Right Hand Thread Bearing Locknuts Nuts. This is the main category in this series

    Product Data

    • Shaft Thread Diameter : M170x3
    • Outside Dia (OD) 220 mm
      (Equiv. 8.661 in.)
    • Thickness (T) min / max 26.000 mm
      (Equiv. 1.024 in.)
    • Slot Width (s) 16.000
    • Slot Depth (T) 7.000
    • Material Steel
    Country of Origin: JP

    Product Compliance and Data

    Additional Resources

    Cross References

    • NoCor KM-34
    • KM34
    View full details

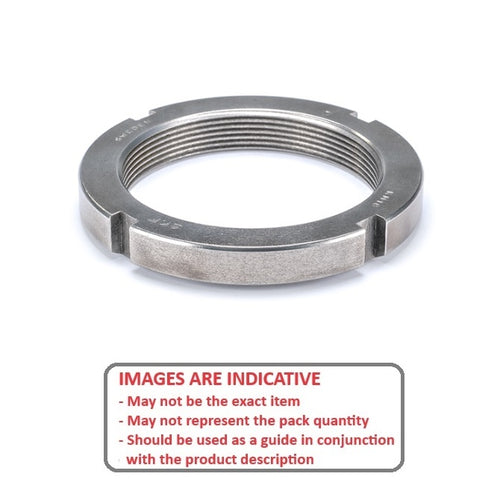

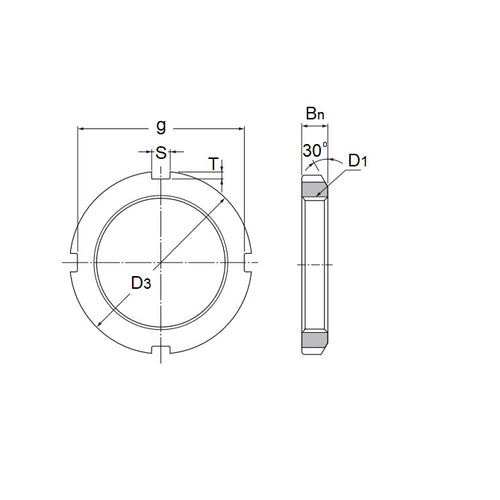

    KM34DiagramKM34Image
