NT160M-LHX-S4 - Datasheet
Brighton Best
Category Information

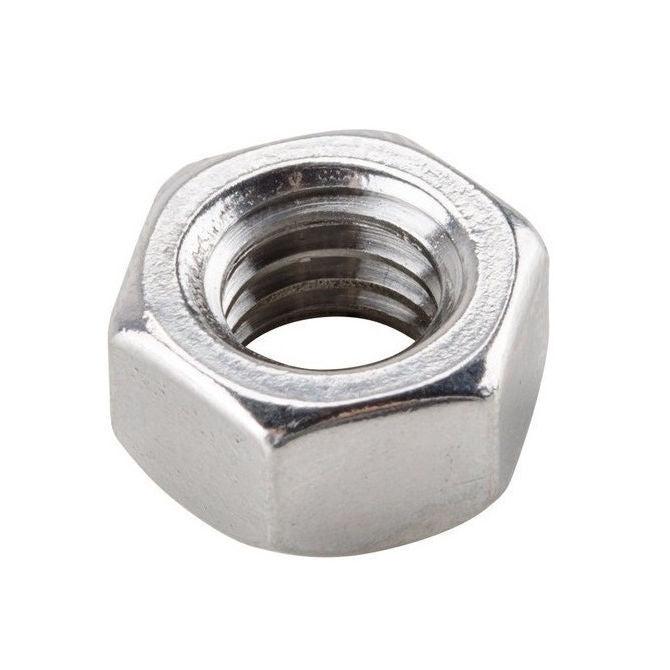

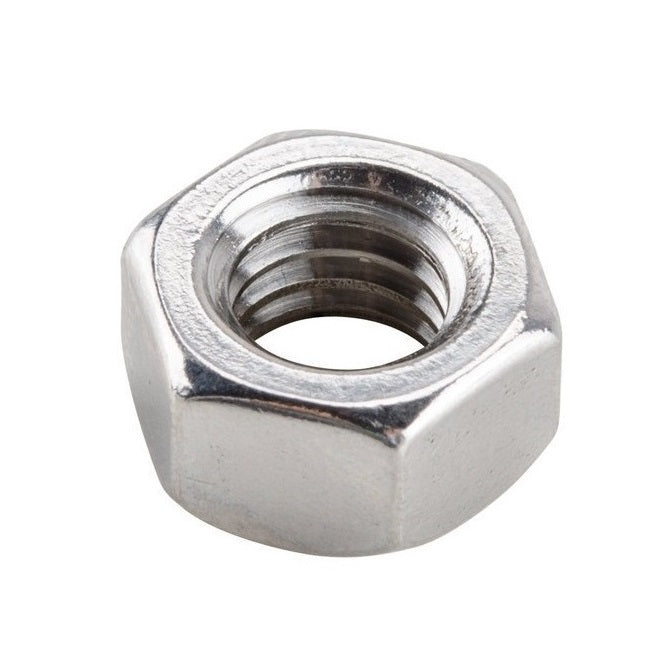

Nuts - Hexagonal - Full - Stainless SteelStainless Steel Full Hexagonal Nuts. UNC - UNF - BA - METRIC - BSW - Course - Fine - Extra Fine.
- An expanded range may be available on special order. Please enquire.
- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : M16 (16x2mm) Left Hand
- Thickness (H)
13
mm
(Equiv. 0.512 in.) - Across Flats (A/F)
24.0
mm
(Equiv. 0.945 in.) - Type Standard
- Pitch 2.000 mm
- Threads Per Inch 12.7 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 834916
