SS160M-0490-CS-DKT - Datasheet
MBA
Category Information

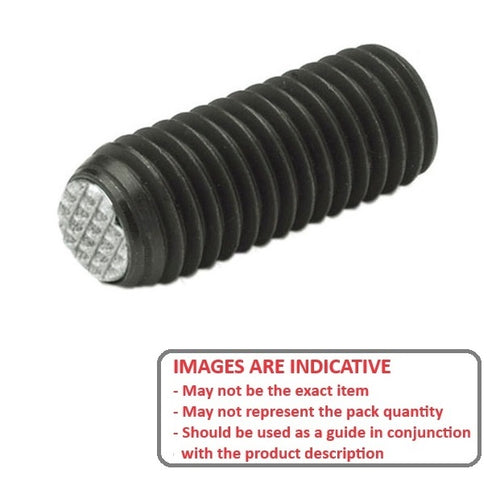

Socket Set Screws - Diamond Knurled Tip - Carbon SteelCarbon Steel Diamond Knurled Tip Socket Set Screws. Grub screws that grip rough shafts.
- Socket driven grub screw swith a knurled diamond tip.
- Unlike traditional cup-point set screws, diamond tip is less aggressive but still provides a strong grip on the contact surface. This allows for a snug fit without damaging or permanently marking the material.
Product Data
- Thread Size : M16 (16x2mm)
- Thread Length (L)
49.0
mm
(Equiv. 1.929 in.) - Type Diamond Knurled Tip
- 50.0
- Ball Diameter (D) 10.7 mm
- Hex Key Size 8.0 mm
- Body Material Carbon Steel
- Ball Material Alloy Steel SUJ2 HRC 55 -60
- Pitch 2.0 mm
- Threads Per Inch 12.7 TPI
- Finish Black Oxide
- Material Carbon Steel with Alloy Steel SUJ2 HRC 55 -60 tip
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi FSMG16-50
- Misumi SCS-M16X50-GB
- SCSM16X50GB
- FSMG1650
