SK160M-040-SL-CZ - Datasheet

MBA

Category Information

Screws - Countersunk - Slotted - Steel

Steel Slotted Countersunk Screws. Flat Head Countersunk UNC - UNF - BA - METRIC

  • An expanded range may be available on special order. Please enquire.
  • Nuts sold seperately - See Nuts.

Product Data

  • Thread Size (C) : M16 (16x2mm)
  • Overall Length (L) 40 mm
    (Equiv. 1.575 in.)
  • Material Zinc Plated Steel
  • Max Head Diameter 30.0 mm
  • Max Head Height 7.5 mm
  • Type Countersunk / Slotted
  • Pitch 2.000 mm
  • Threads Per Inch 12.7 TPI
  • Material Zinc Plated Steel
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • Hitech MSCSZP1640
View full details

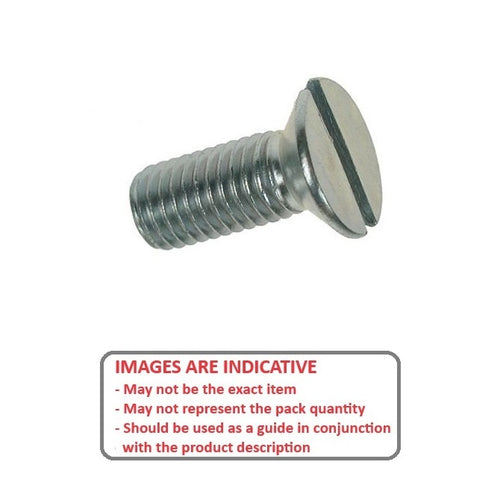

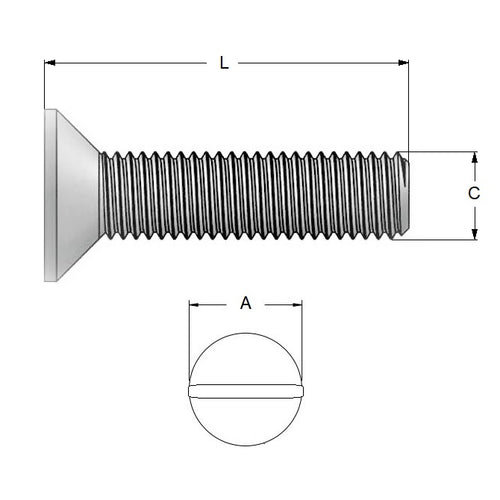

SK160M-040-SL-CZDiagramSK160M-040-SL-CZImage
