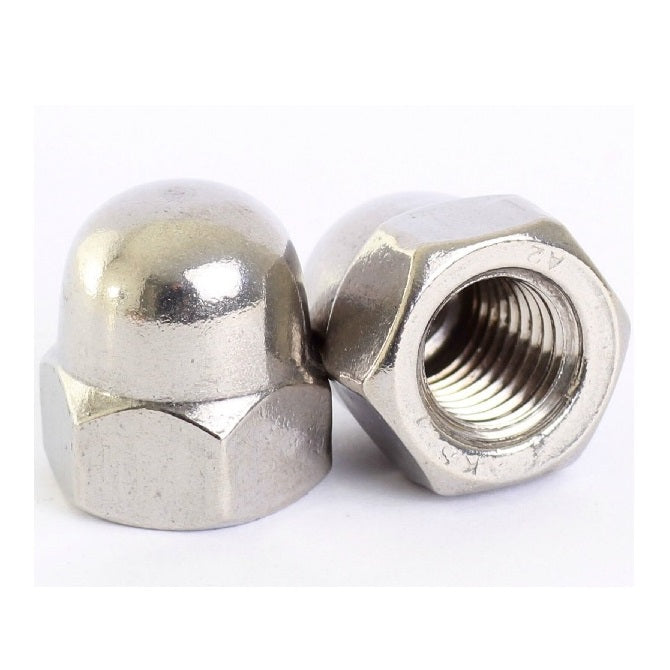

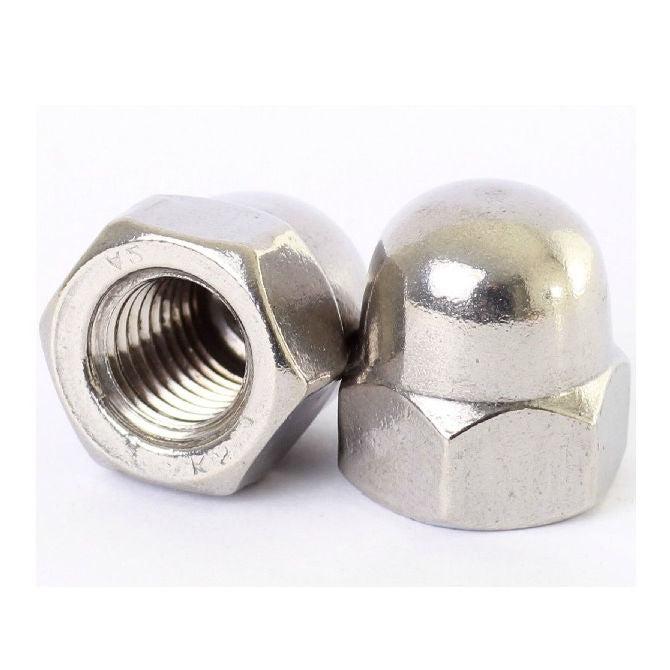

NT160M-DM-S6 - Datasheet

Brighton Best

Product Data

• Thread Size : M16 (16x2mm)
• Material 316 Stainless
• Height (B) 28 mm
  (Equiv. 1.102 in.)
• Across Flats (A) 24
• Pitch 2.000 mm
• Threads Per Inch 12.7 TPI
• Material Stainless Steel 316 (Similar to A4, 18-10)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
