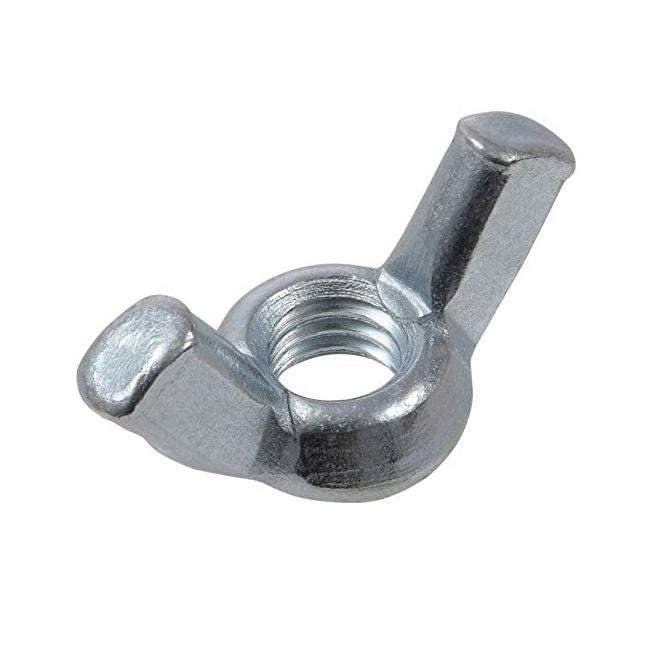

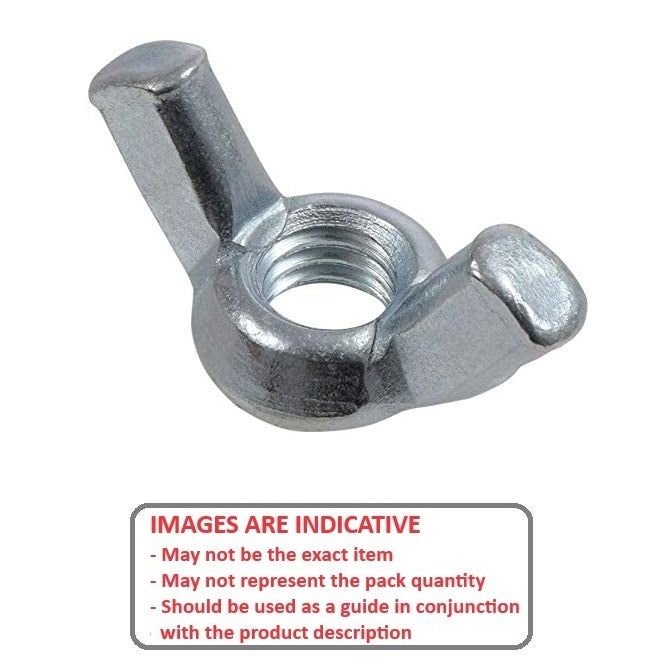

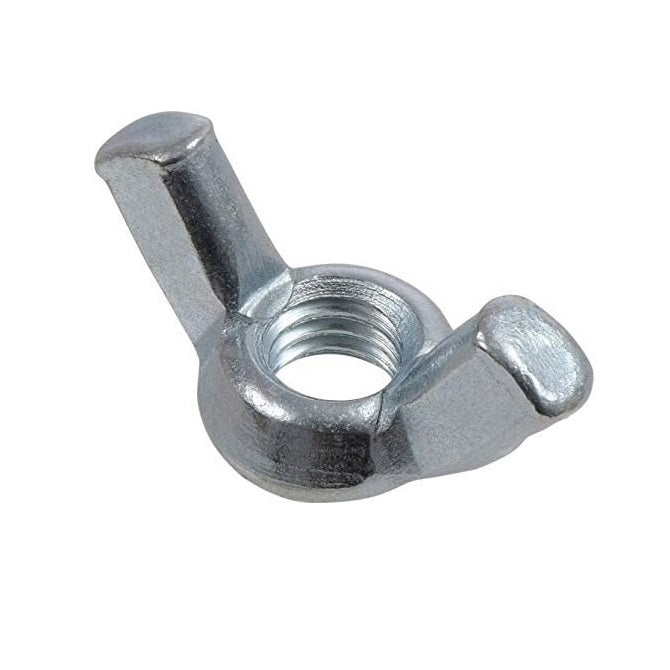

NT160M-WG-S4 - Datasheet

Brighton Best

Product Data

• Thread Size : M16 (16x2mm)
• Body Height (D) 10.7 mm
• Wing Width 62.0 mm
• Overall Height (C) 30.8 mm
• 2.000 mm / 12.7 TPI
• Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
