SS160M-0240-S4-S440-FB - Datasheet
MBA
Category Information

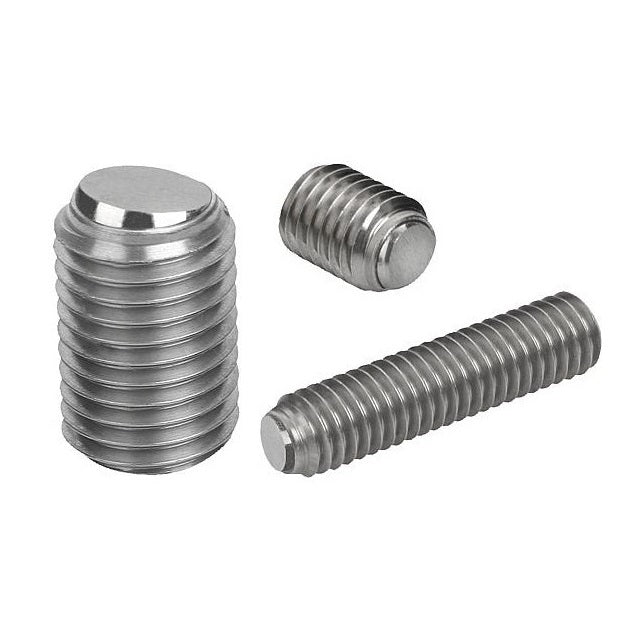

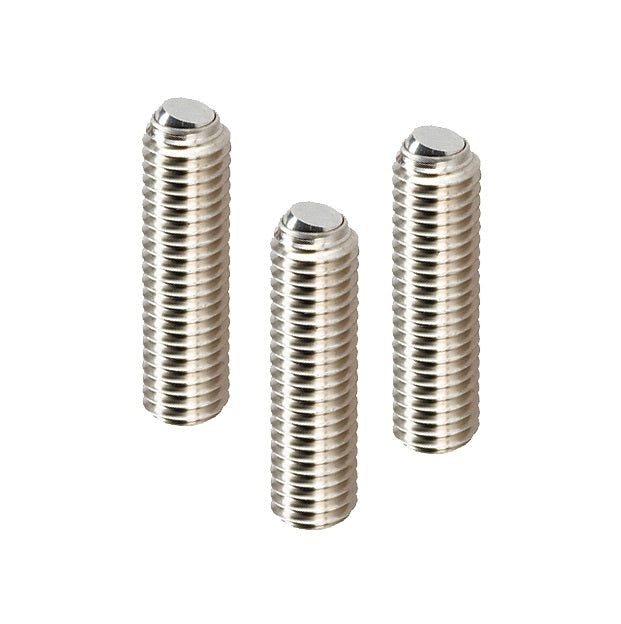

Socket Set Screws - Flat Tip Aligning - Stainless SteelStainless Steel Flat Tip Aligning Socket Set Screws. Grub screws with a pivoting flat tip. The ball can pivot up to 9 Deg. To fasten the object securely to misaligned parts.
- Socket driven grub screws with a rotating flat tip.
- Also known as a flat ball tip set screw or a clamping screw
Product Data
- Thread Size : M16 (16x2mm)

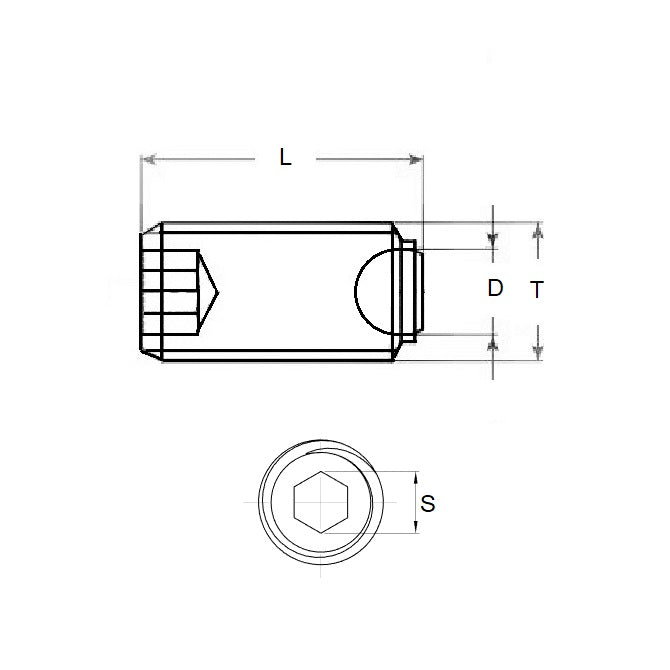

- Thread Length (L)
24.0
mm
(Equiv. 0.945 in.) - Type Aligning Flat Tip
- 25.0
- Ball Diameter (D) 10.4
- Hex Key Size 6.0
- Body Material 304 Stainless Steel
- Ball Material 440C Stainless HRC 50-55
- Pitch 2.0 mm
- Threads Per Inch 12.7 TPI
- Material 304 Stainless Steel with 440C Stainless HRC 50-55 tip
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi BSF16X25
- Misumi FSUB16-25
- FSUB1625
