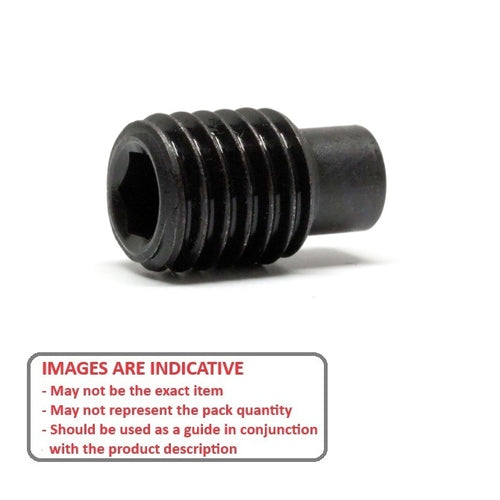

SS160M-0300-AS-DP - Datasheet

MBA

Product Data

• Thread Size : M16 (16x2mm)
• Thread Length (L) 21.6 mm
  (Equiv. 0.85 in.)
• Type Dog Point
• Overall Length (L + L1) 30.0 mm
• Tip Diameter (d) 11.6 - 12.0 mm
• Tip Length (L1) 8.0 - 8.4 mm
• Hex Key Size 8.00
• Pitch 2.000 mm
• Threads Per Inch 12.7 TPI
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
