SUS132RS - Datasheet
MBA
Category Information

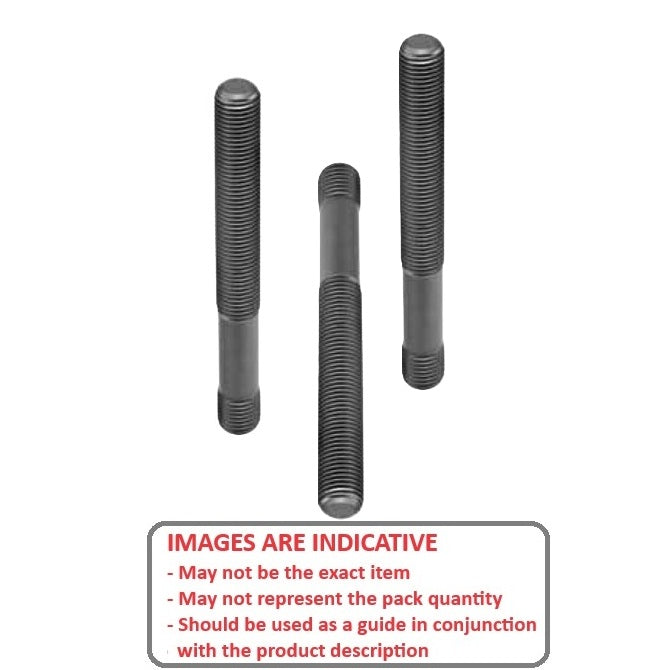

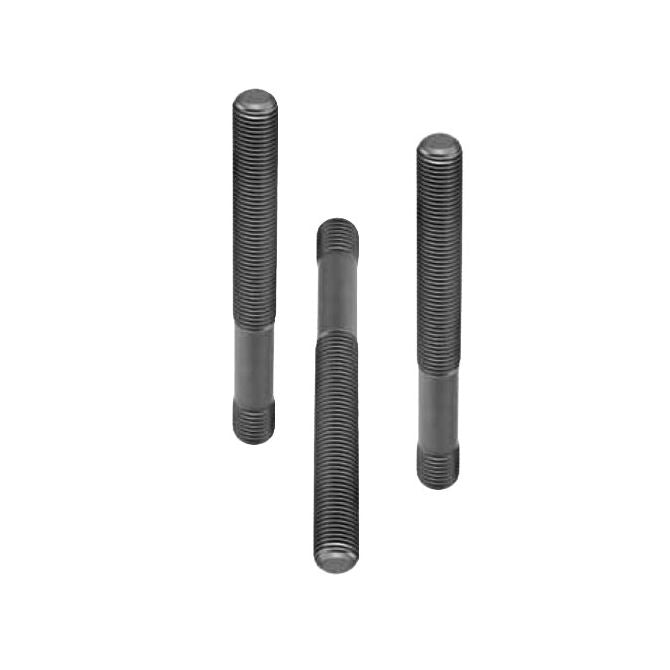

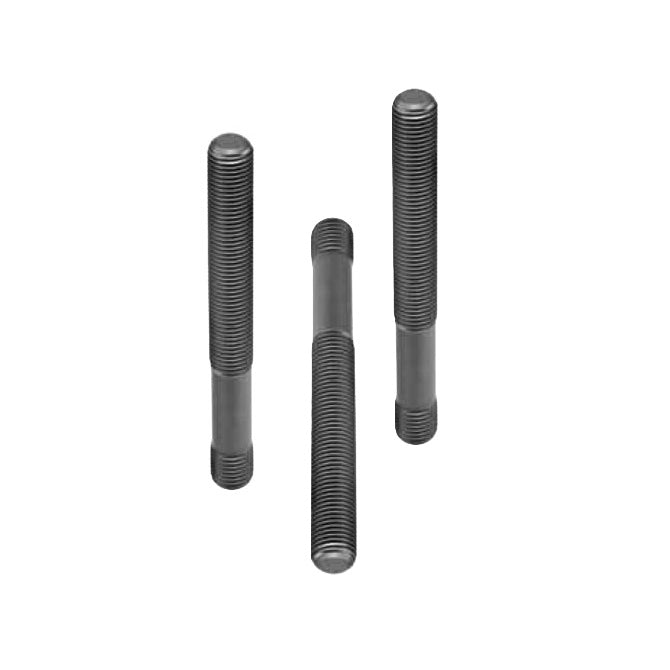

Threaded Rod - Clamping StudsClamping Studs Threaded Rod. Steel and 303 stainless steel.
- Threaded metal rods or posts that serve as a crucial component in workholding systems to securely fasten workpieces, fixtures, and machinery like vices to a table or machine bed.
- Used in conjunction with T-nuts, flange nuts, or specialized zero-point clamping systems, provide high-precision, repeatable, and fast setups by creating a secure point of contact and allowing for quick adjustments.
- Metric and imperial sizes.
- Yield strength 100,000 PSI. Tensile strength 125,000 PSI

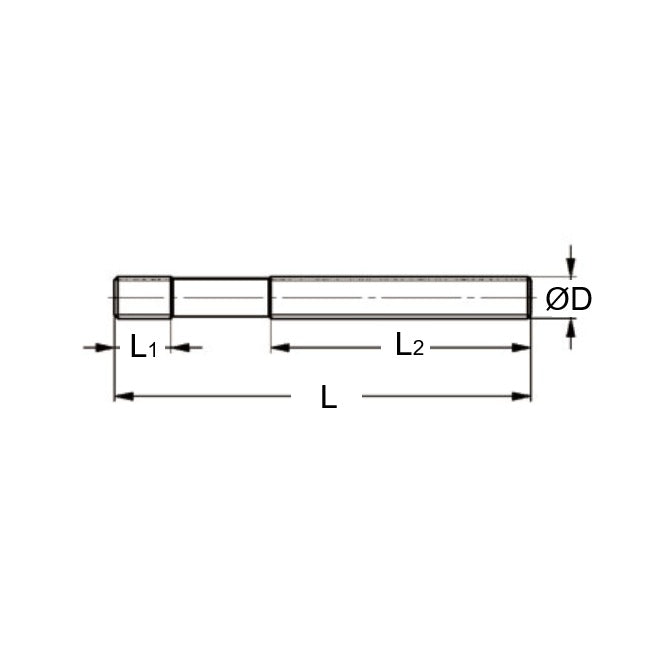

Product Data
- Thread : M16 (16x2mm)
- Length (L)
160.00
mm
(Equiv. 6.299 in.) - Thread Length (A) 19
- Thread Length (B) 100 mm
- Hardness Class 8.8
- Material Steel with Rolled Threads
Product Compliance and Data
Additional Resources
Cross References
- SUS-132
- SUS132
