SC160M-100-B-SK-C - Datasheet
Brighton Best
Category Information

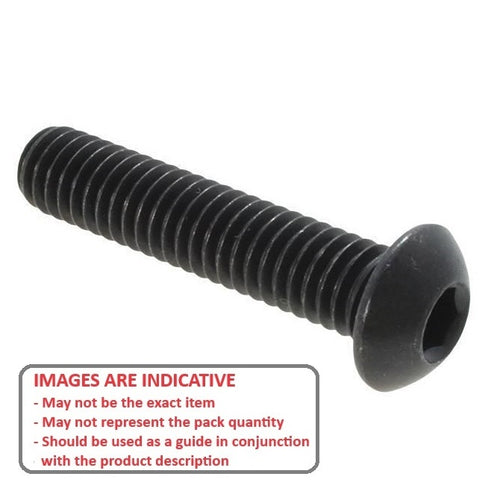

Screws - Button - Socket - Alloy SteelAlloy Steel Socket Button Screws. UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7380.
Product Data
- Thread Size (C) : M16 (16x2mm)
- Thread Length (L)
100
mm
(Equiv. 3.937 in.) - Material Alloy Steel
- Max Head Diameter 28.0 mm
- Max Head Height 8.6 mm
- Hex Key (D) 10.00 mm
- Pitch 2.000 mm
- Threads Per Inch 12.7 TPI
- Material Steel Alloy
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 545550
