KF160M-063-7L-ST - Datasheet

MBA

Category Information

Knobs - Lobe - Seven Lobe - Female - Standard

Standard Female Seven Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M16 (16x2mm)
  • Head Diameter (A) 63.00 mm
    (Equiv. 2.48 in.)
  • Thread Length 18.0 mm
    (Equiv. 0.709 in.)
  • Colour Black
  • Hub Diameter (C) 26.00 mm
  • Hub Length (D) 21.00 mm
  • Knob Height (B) 40.00 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KPB1090
  • KPB-1090
View full details

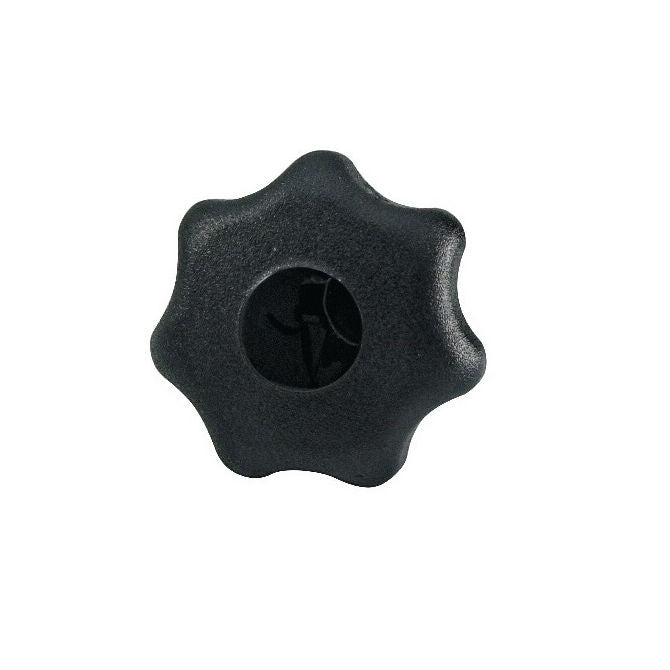

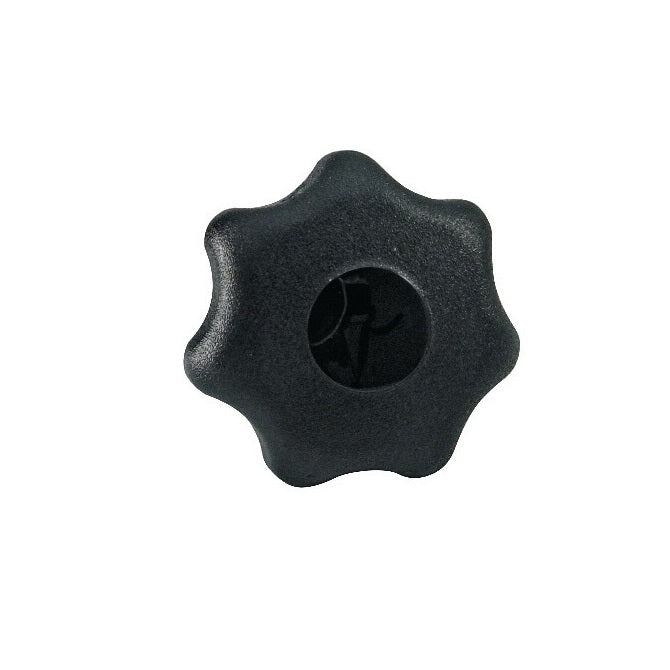

KF160M-063-7L-STDiagramKF160M-063-7L-STImage
