MLM-160M-100-ZRP-ECO - Datasheet
ECO
Category Information

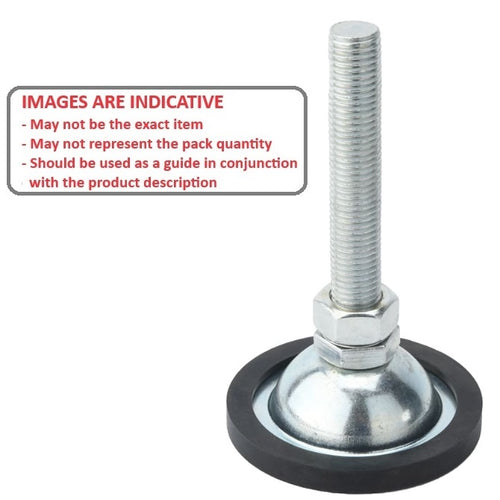

Mounts - Levelling Studded - Economy - Rubber PaddedRubber Padded Economy Levelling Studded Mounts. Levelling adjusters. Protects general metalworking processes equipment including punch presses, milling machines, lathes, mixers, injection moulding machines, grinders from shock and vibration.
- An expanded range may be available on special order. Please enquire.
Product Data

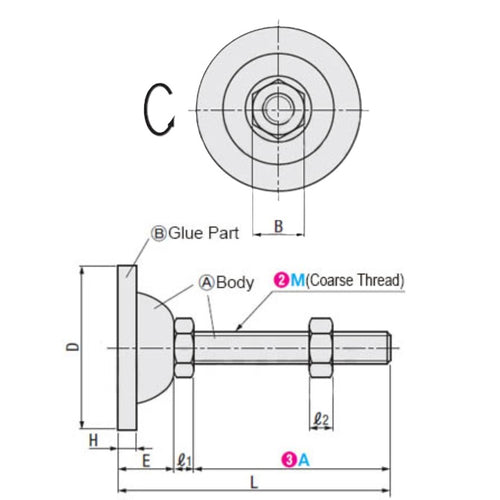

- Thread Size (A) : M16 (16x2mm)
- Base Diameter (D) 80.0 mm
- Foot Height (C) 35.0 mm
- Thread Length (F) 100.0 mm
- Base Height (E) 27.0 mm
- Overall Height 135.0 mm
- Load Rating 45.08 Kg
- Pad Thickness 8 mm
- Pad Material Rubber
- Hex Flats (B) 24 mm
- Material Steel - Zinc
Product Compliance and Data
Additional Resources
Cross References
- Misumi® C-CFJGN16-100
- CCFJGN16100
