MLM-160M-150-NYCZ - Datasheet
MBA
Category Information

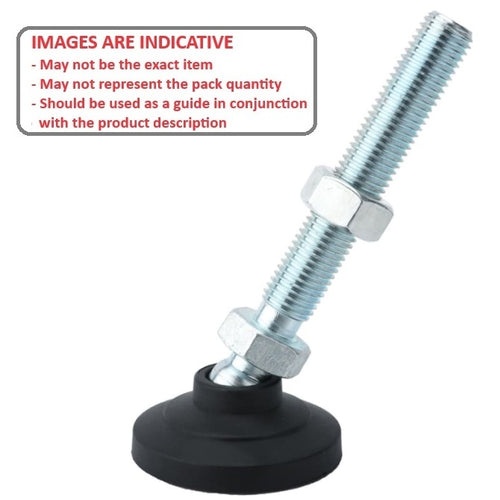

Mounts - Levelling Studded - Light Duty - Nylon - No Lag HolesNo Lag Holes Nylon Light Duty Levelling Studded Mounts. Adjusters.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M16 (16x2mm)
- Base Diameter (D) 60.00 mm
- Foot Height (C) 33.00 mm
- Thread Length (F) 150.00 mm
- Base Height (E) 7.50 mm
- Overall Height 183.0 mm
- Load Rating 150 Kg
- Finish Zinc Plated
- 24.00
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi® C-CAJPD16-150
- CCAJPD16150
