NT140M-NI-S6 - Datasheet
Brighton Best
Category Information

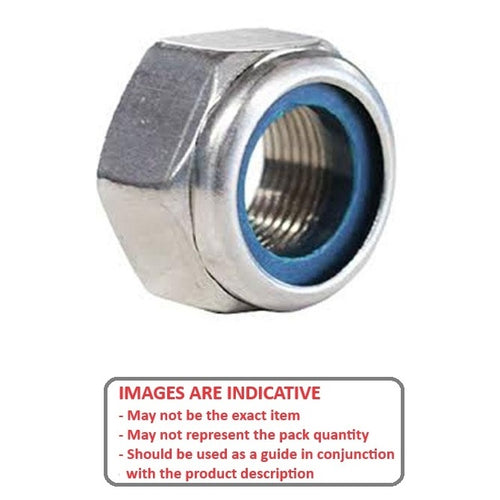

Nuts - Hexagonal - Nylon Insert - Stainless SteelStainless Steel Nylon Insert Hexagonal Nuts. Nylon Insert for Locking. NylocTM and other brands.
- An expanded range may be available on special order. Please enquire.
- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : M14 (14x2mm)
- Thickness (H)
14.0
mm
(Equiv. 0.551 in.) - Across Flats (A/F)
22.0
mm
(Equiv. 0.866 in.) - 14.0
- Type Standard
- Pitch 2.000 mm
- Threads Per Inch 12.7 TPI
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 563070
- 94205A290
