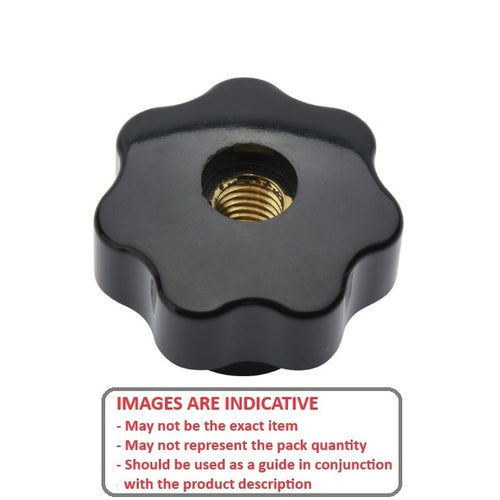

KF120M-050-7L-P - Datasheet

MBA

Product Data

• Thread Size : M12 (12x1.75mm) _{+ 0.10 / - 0.00}

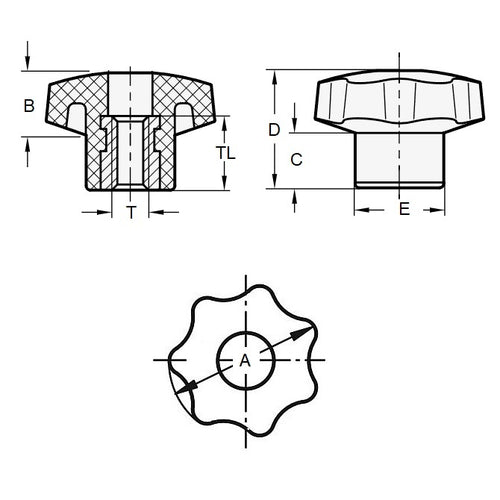

• Head Diameter (A) 50.0 mm _{+ 0.00 / - 0.10}
  (Equiv. 1.969 in.)
• Thread Length 25.0 mm _{+ 0.00 / - 0.12}
  (Equiv. 0.984 in.)
• Colour Black
• Hub Diameter (C) 29.00 mm
• Hub Length (D) 15.00 mm
• Knob Height (B) 32.0 mm
• Material Brass

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Knobs PDF Quick Guide by Thread Size


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Misumi C-NLZT12
• CNLZT12
