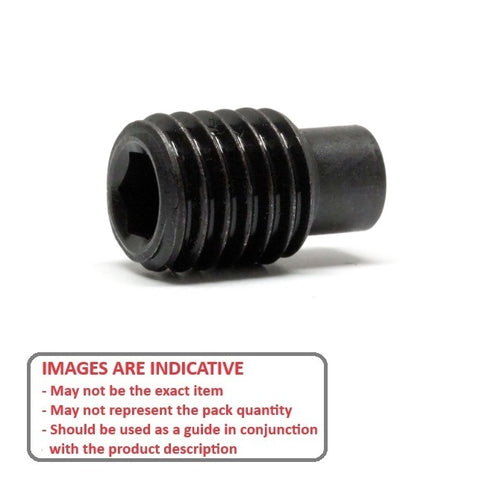

SS120M-0500-AS-DP - Datasheet

SSA

Product Data

• Thread Size : M12 (12x1.75mm)
• Thread Length (L) 43.7 mm
  (Equiv. 1.72 in.)
• Type Dog Point
• Overall Length (L + L1) 50.0 mm
• Tip Diameter (d) 8.1 - 8.5 mm
• Tip Length (L1) 6.0 - 6.3 mm
• Hex Key Size 6.00
• Pitch 1.750 mm
• Threads Per Inch 14.51 TPI
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Brighton Best 833182
