SS120M-0400-S4-FB - Datasheet
MBA
Category Information

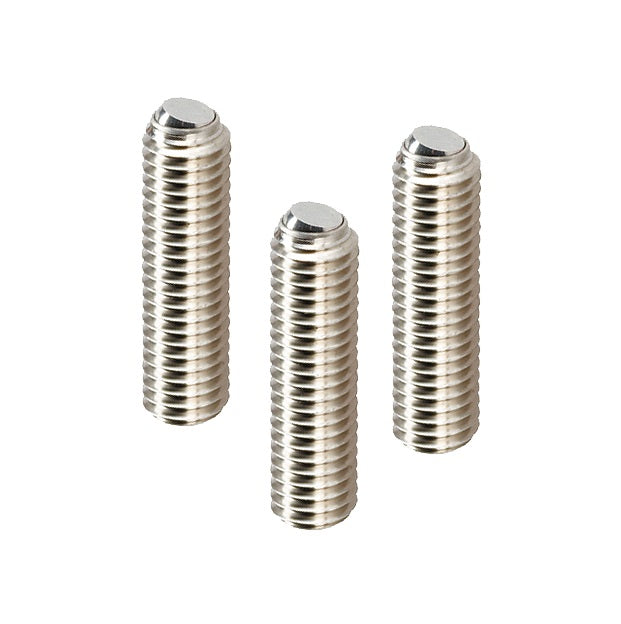

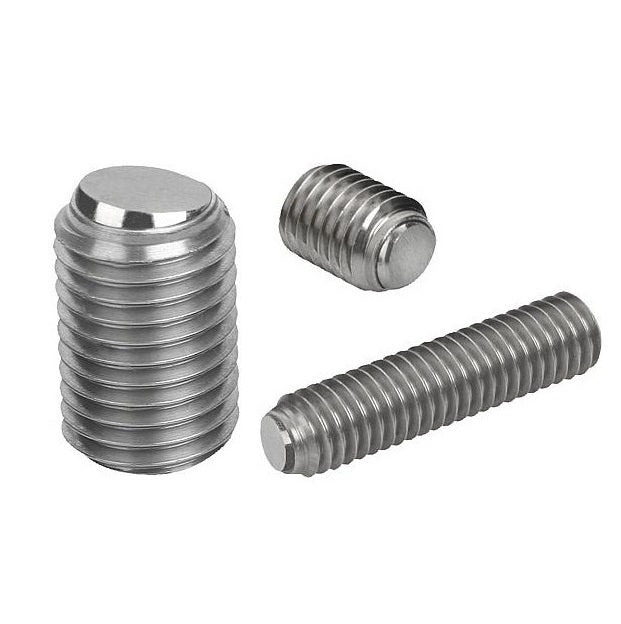

Socket Set Screws - Flat Tip Aligning - Stainless SteelStainless Steel Flat Tip Aligning Socket Set Screws. Grub screws with a pivoting flat tip. The ball can pivot up to 9 Deg. To fasten the object securely to misaligned parts.
- Socket driven grub screws with a rotating flat tip.
- Also known as a flat ball tip set screw or a clamping screw
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

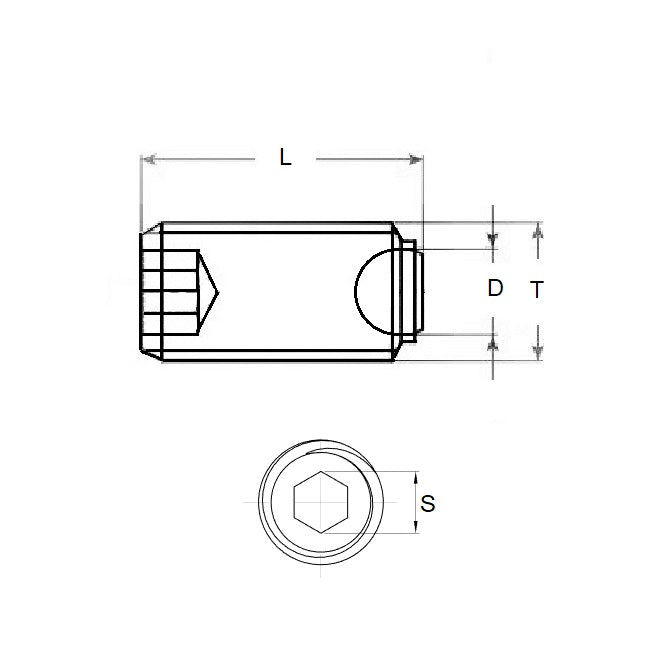

- Thread Size : M12 (12x1.75mm)
- Thread Length (L)
40.0
mm
(Equiv. 1.575 in.) - Type Aligning Flat Tip
- Ball Diameter (D) 8.5
- Hex Key Size 6.0
- Body Material 304 Stainless Steel (A2, 18-8)
- Ball Material 440C Stainless HRC 50-55
- Pitch 1.75 mm
- Threads Per Inch 14.51 TPI
- Material 304 Stainless Steel (A2, 18-8) with 440C Stainless HRC 50-55 tip
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- GN.14458
- S705YFM1240
- 605M1240BNQt7A60362131
- 605-M12-40-BN-Qt.-7A6.036213.1
