SS120M-0420-S4-S440-RB - Datasheet
MBA
Category Information

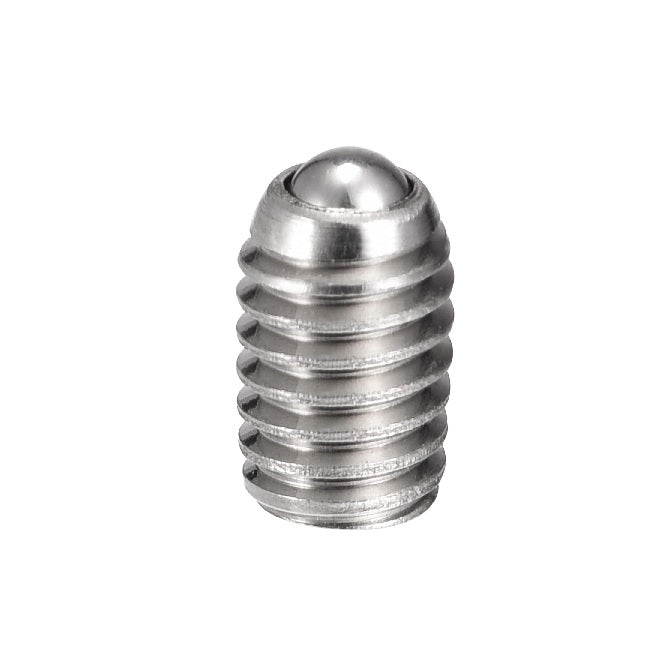

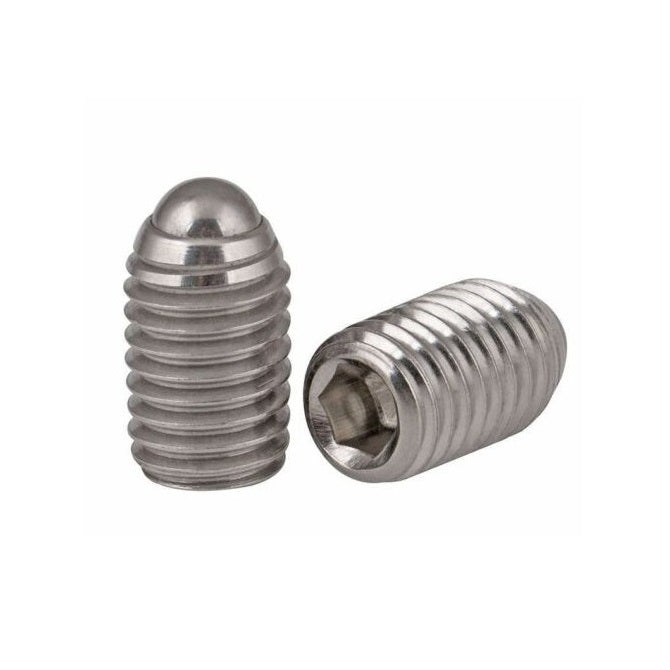

Socket Set Screws - Rolling Ball Tip - Stainless SteelStainless Steel Rolling Ball Tip Socket Set Screws. Rolling ball tip for locating into a hole
- Rolling ball set screws are not designed to bear heavy loads.
- Used to lightly fasten fragile work pieces.
- We would recommend testing if you plan to use them in a load bearing application
- Various ball materials include Alumina, Polyacetal or 440C Stainless Steel
Product Data
- Thread Size : M12 (12x1.75mm)
- Thread Length (L)
39.1
mm
(Equiv. 1.539 in.) - Type Rolling Ball Tip
- Overall Length (L) 42.0 mm
- Ball Diameter (D) 8.7 mm
- Hex Key Size 6.0
- Body Material 304 Stainless Steel
- Ball Material 440C Stainless HRC 50-55
- Pitch 1.8 mm
- Threads Per Inch 14.51 TPI
- Material 304 Stainless Steel with 440C Stainless HRC 50-55 tip
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi BSR12X40-SUS
- Misumi RSU12-42
- Misumi SCSS-M12X40-R
- BSR12X40SUS
- RSU1242
- SCSSM12X40R
