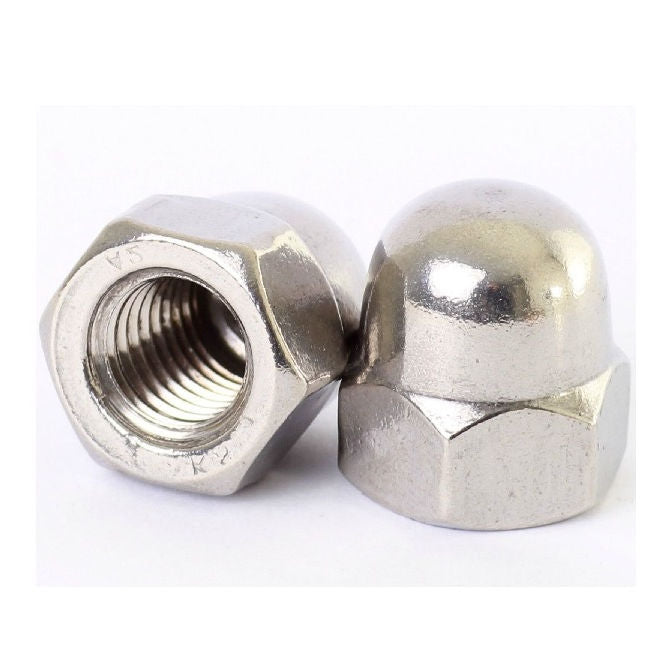

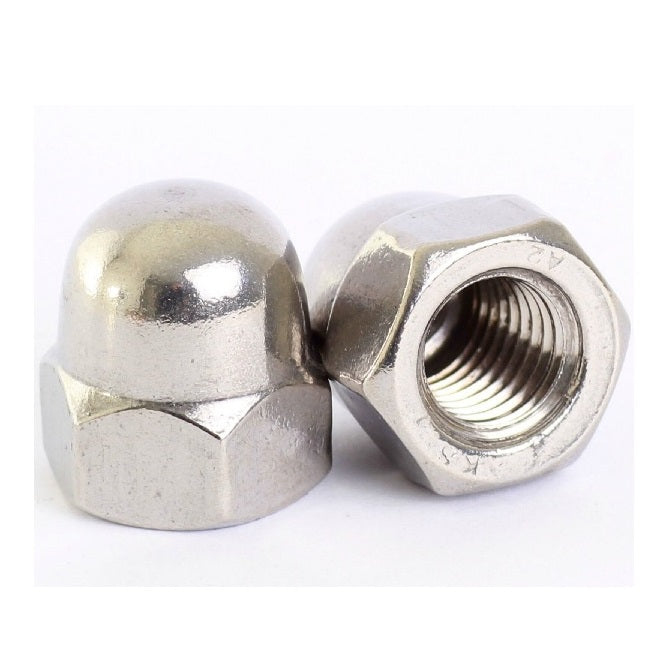

NT120M-DM-S6 - Datasheet

Brighton Best

Product Data

• Thread Size : M12 (12x1.75mm)
• Material 316 Stainless
• Height (B) 22 mm
  (Equiv. 0.866 in.)
• Across Flats (A) 19
• Pitch 1.750 mm
• Threads Per Inch 14.51 TPI
• Material Stainless Steel 316 (Similar to A4, 18-10)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
