SC120M-025-H-S4 - Datasheet

MBA

Category Information

Screws - Hex Head - 304 Stainless - Standard

Standard 304 Stainless Hex Head Screws. Metric - UNF - UNC

  • An expanded range may be available on special order. Please enquire.
  • Nuts sold seperately - See Nuts.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • Thread Size (C) : M12 (12x1.75mm)
  • Thread Length (L) 25 mm
    (Equiv. 0.984 in.)
  • Material 304 Stainless
  • Max Head A/F 21.10 mm
  • Max Head Height 7.68 mm
  • Type Hex Head
  • Pitch 1.750 mm
  • Threads Per Inch 14.51 TPI
  • Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 91287A188
View full details

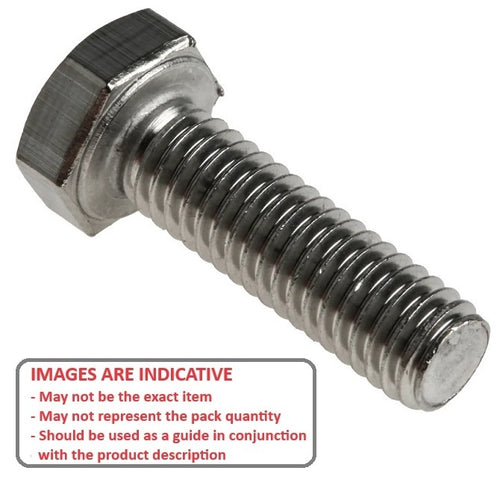

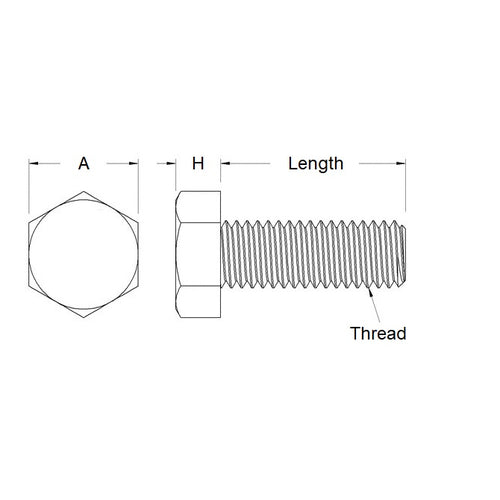

SC120M-025-H-S4DiagramSC120M-025-H-S4Image
