SS120M-0200-AS-CP - Datasheet

SSA

Product Data

• Thread Size : M12 (12x1.75mm)

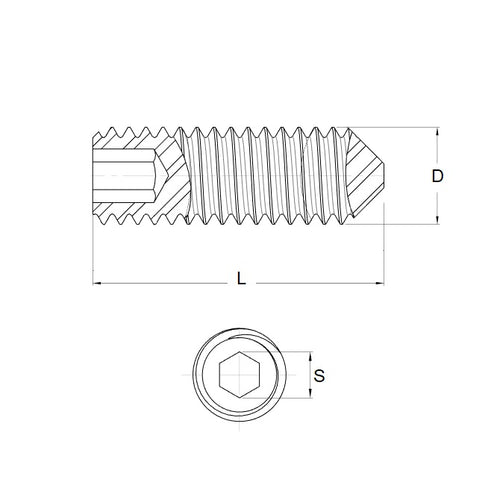

• Thread Length (L) 20.0 mm
  (Equiv. 0.787 in.)

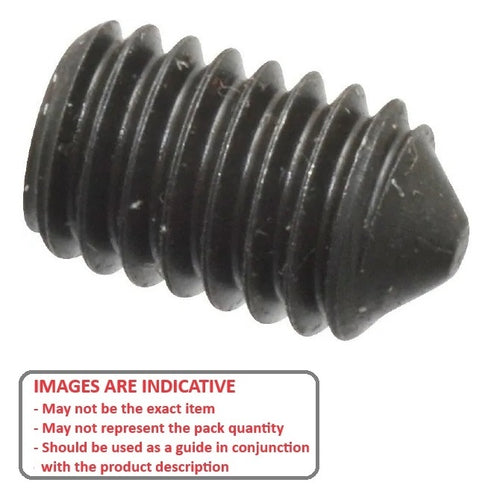

• Type Cone Point
• Hex Key Size 6.00
• Pitch 1.750 mm
• Threads Per Inch 14.51 TPI
• Point Angle 90 ° +/- 2
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Brighton Best 831192
• 91210A630
