Miniature Bearings Australia
SUS120RS - Datasheet
MBA
Category Information

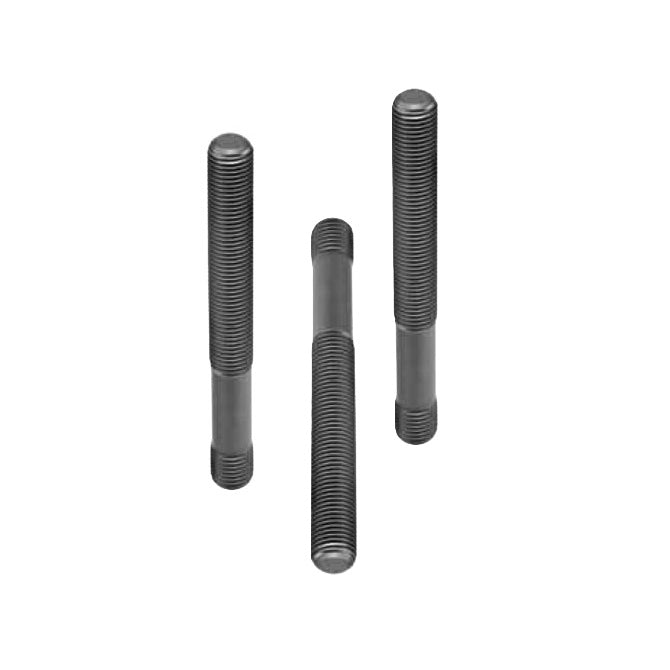

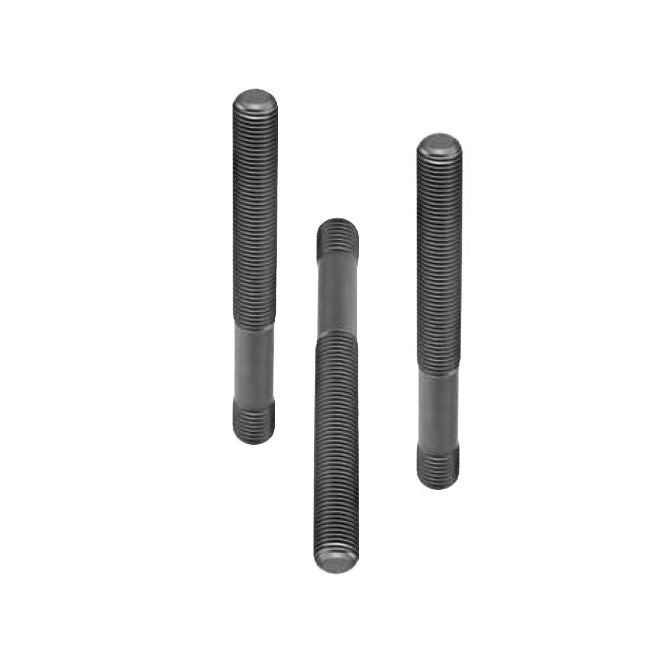

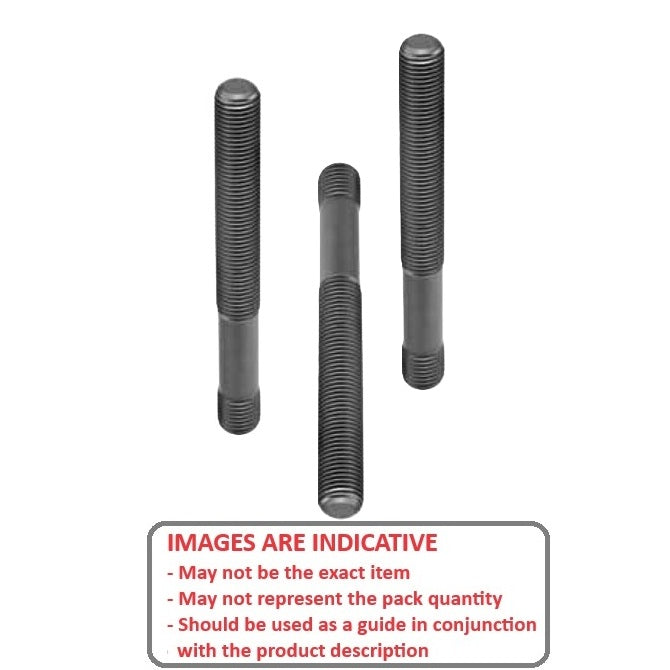

Threaded Rod - Clamping StudsClamping Studs Threaded Rod. Steel and 303 stainless steel.
- Threaded metal rods or posts that serve as a crucial component in workholding systems to securely fasten workpieces, fixtures, and machinery like vices to a table or machine bed.
- Used in conjunction with T-nuts, flange nuts, or specialized zero-point clamping systems, provide high-precision, repeatable, and fast setups by creating a secure point of contact and allowing for quick adjustments.
- Metric and imperial sizes.
- Yield strength 100,000 PSI. Tensile strength 125,000 PSI
Product Data

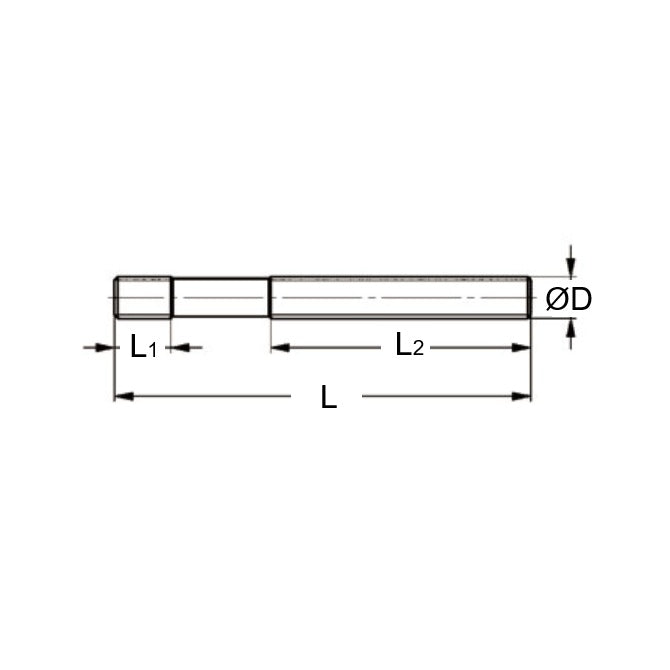

- Thread : M12 (12x1.75mm)
- Length (L)
125.00
mm
(Equiv. 4.921 in.) - Thread Length (A) 15
- Thread Length (B) 75 mm
- Hardness Class 10.9
- Material Steel with Rolled Threads
Product Compliance and Data
Additional Resources
Cross References
- SUS120
- SUS-120
