FMH-712 - Datasheet
MBA
Category Information

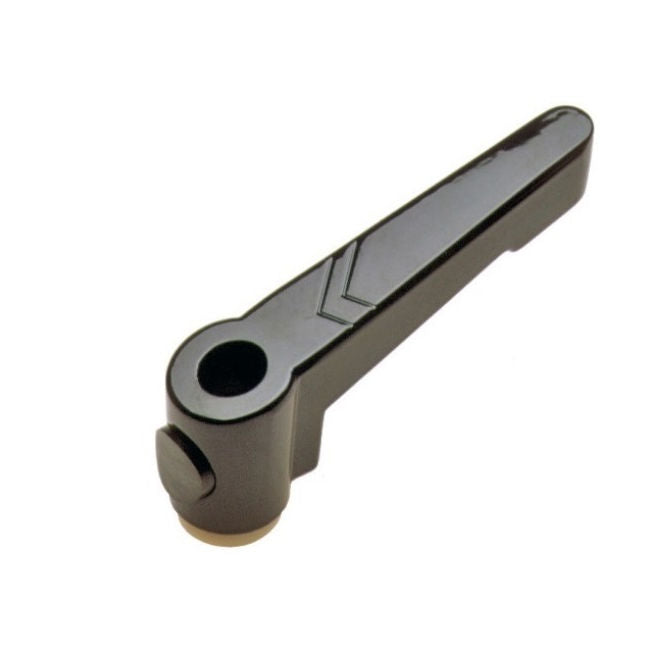

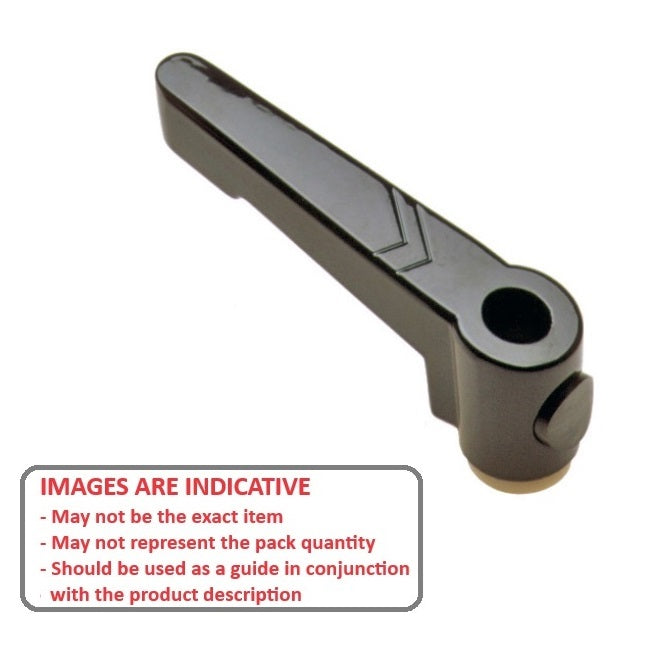

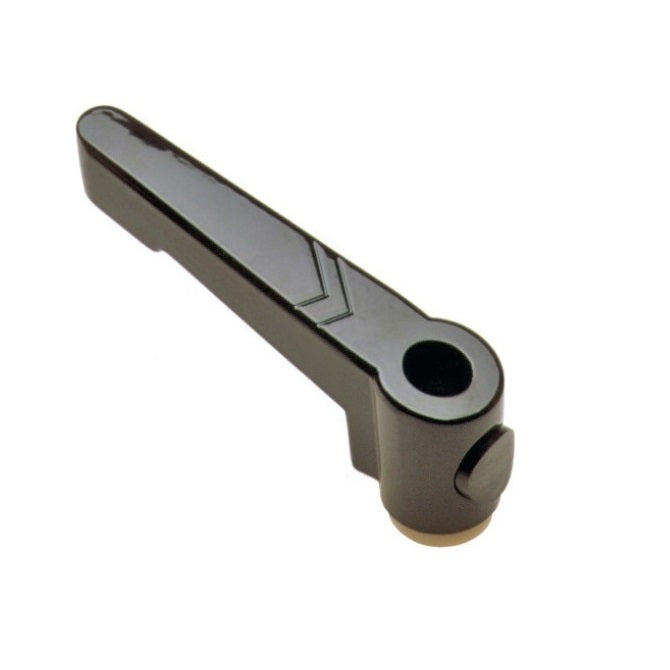

Levers - Clamp Quick ReleaseClamp Quick Release Levers. Handles: Die-cast zinc or plastic.
- This category will be discontinued when this item is sold.
- This item is priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
- Internal thread: mechanism made from carbon steel.
- The thru-hole clamping lever allows for quick clamping on long thread lengths.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : M12 (12x1.75mm)

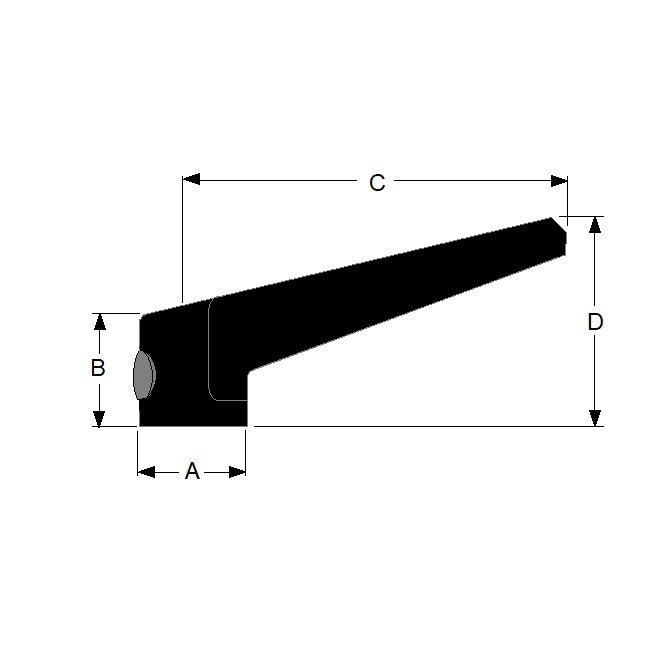

- Lever Centre Length (C)
108.00
mm
(Equiv. 4.252 in.) - - Die Cast Zinc
- Height (D) 75.00 mm
- Base Diameter (A) 32.00 mm
- Base Height (B) 38.00 mm
- Load Rating 4005.00 kg
- Torque 51.78 Nm
- Material Die Cast Zinc
