KF120M-063-7LQA - Datasheet
MBA
Category Information

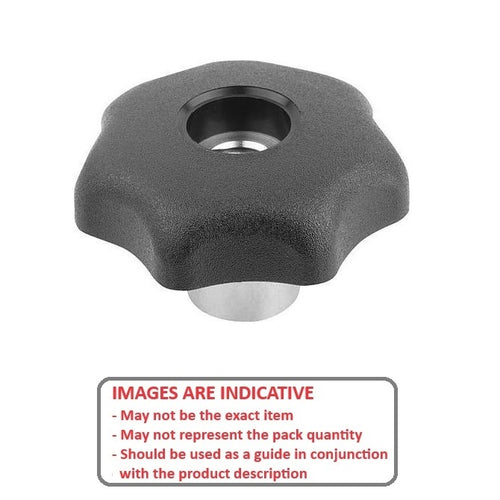

Knobs - Lobe - Seven Lobe - Female - Quick ActingQuick Acting Female Seven Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : M12 (12x1.75mm)

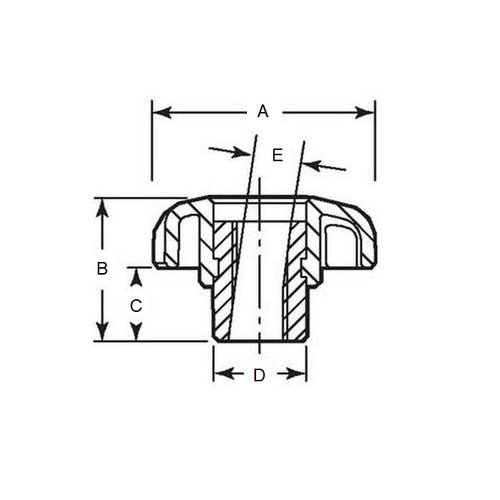

- Head Diameter (A)
63.00
mm
(Equiv. 2.48 in.) - Colour Black
- Hub Diameter (D) 19.00 mm
- Hub Length (C) 21.00 mm
- Knob Height (B) 39.50 mm
- E 12.30 mm
- Material Steel Hub
Product Compliance and Data
Additional Resources
Cross References
- KPB-1133
- KPB1133
