KF120M-060-6L-PBR - Datasheet

MBA

Category Information

Knobs - Lobe - Six Lobe - Female - Through Hole

Through Hole Female Six Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : M12 (12x1.75mm)
  • Head Diameter (A) 60.00 mm
    (Equiv. 2.362 in.)
  • Thread Length 18.0 mm
    (Equiv. 0.709 in.)
  • Colour Black
  • Hub Diameter (E) 24.00 mm
  • Hub Length (C) 18.00 mm
  • Knob Height (D) 34.00 mm
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 4273T87
  • JCL3535
  • JCL-3535
View full details

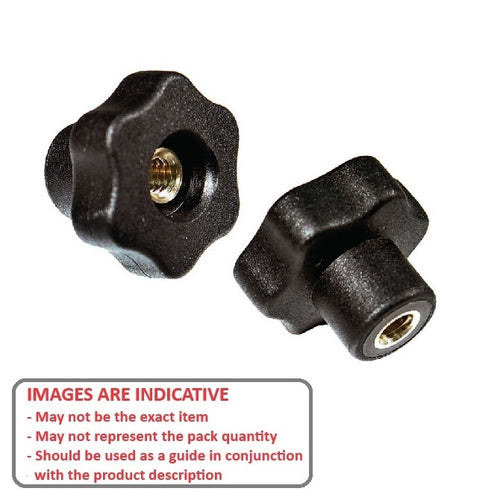

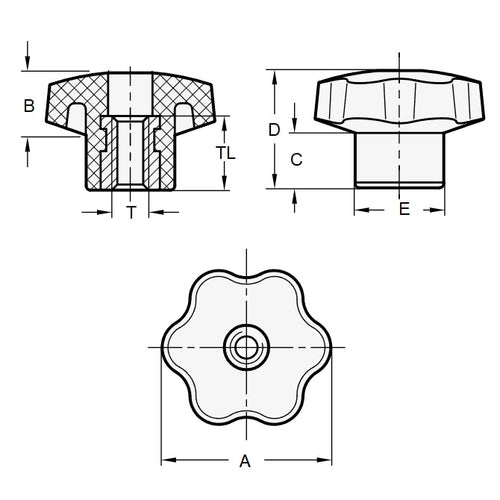

KF120M-060-6L-PBRDiagramKF120M-060-6L-PBRImage
