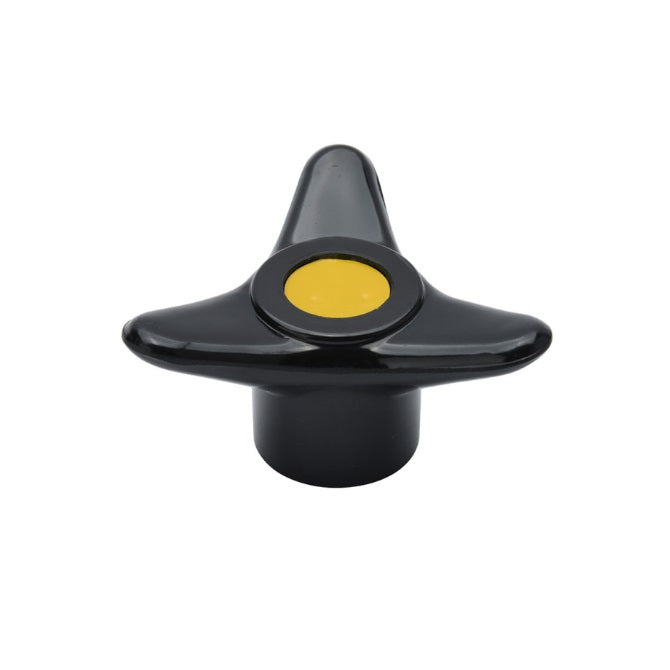

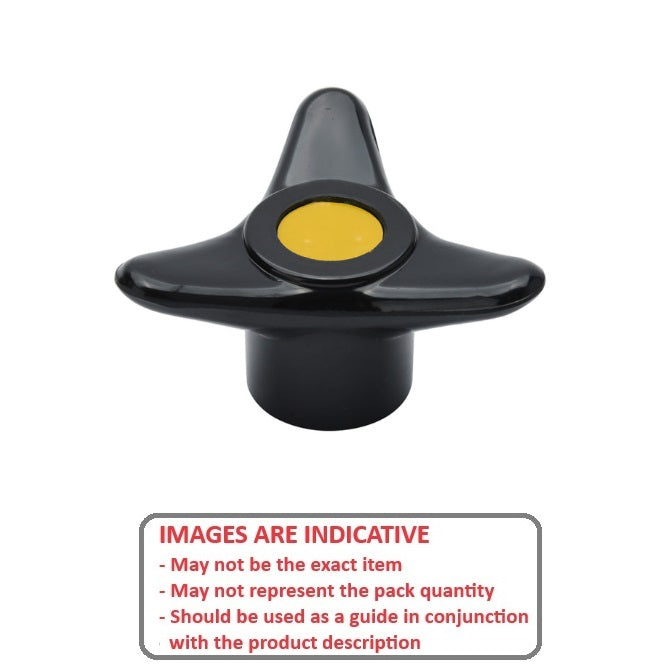

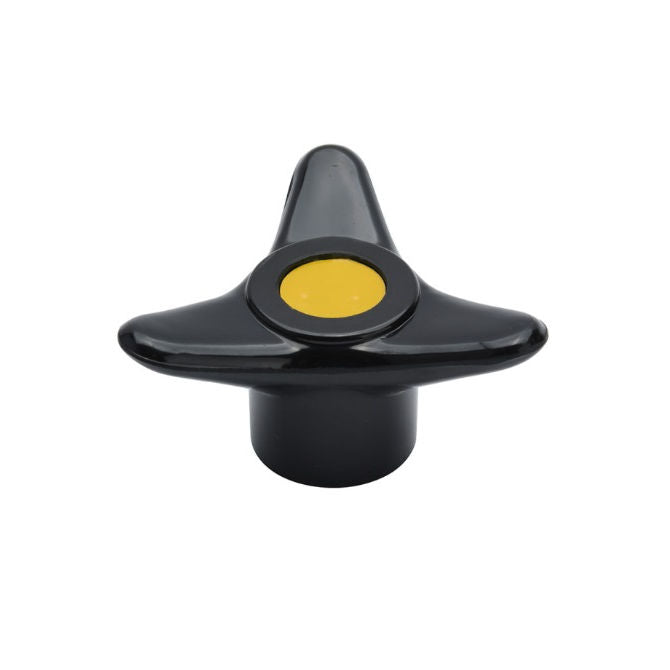

KF120M-100-3LA - Datasheet

MBA

Product Data

• Thread Size : M12 (12x1.75mm) _{+ 0.10 / - 0.00}

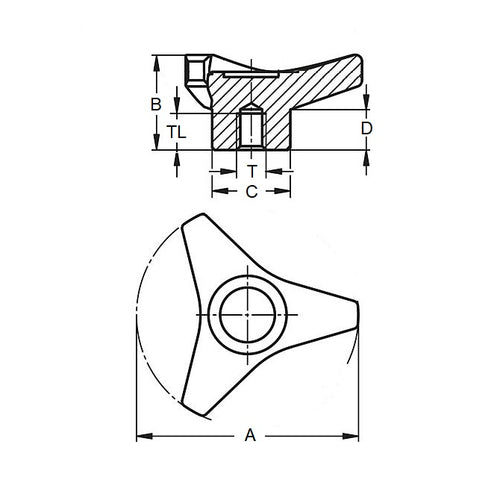

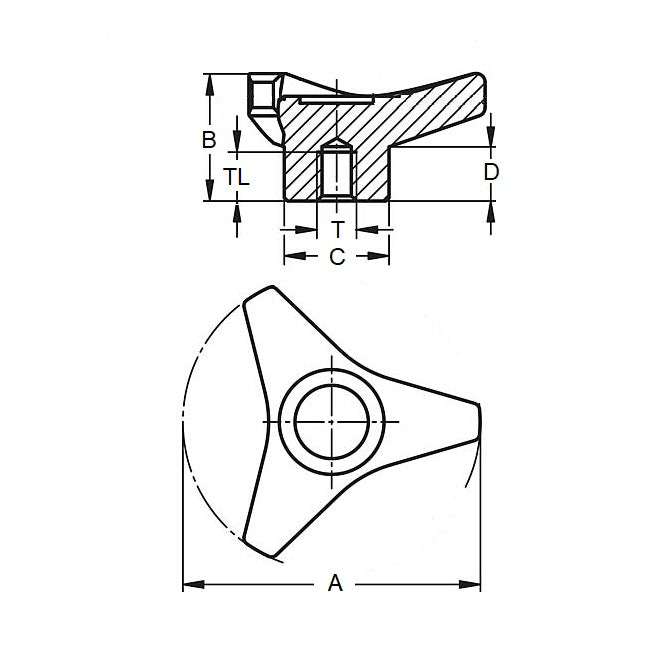

• Head Diameter (A) 100.0 mm _{+ 0.00 / - 0.10}
  (Equiv. 3.937 in.)
• Thread Length 21.0 mm _{+ 0.00 / - 0.12}
  (Equiv. 0.827 in.)
• Colour Black
• Hub Diameter (C) 35.00 mm
• Hub Length (D) 21.00 mm
• 42.5 mm
• Material Brass

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Knobs PDF Quick Guide by Thread Size


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Misumi C-NSJF12
• CNSJF12
