KLI-120MF-180-18 - Datasheet
MBA
Category Information

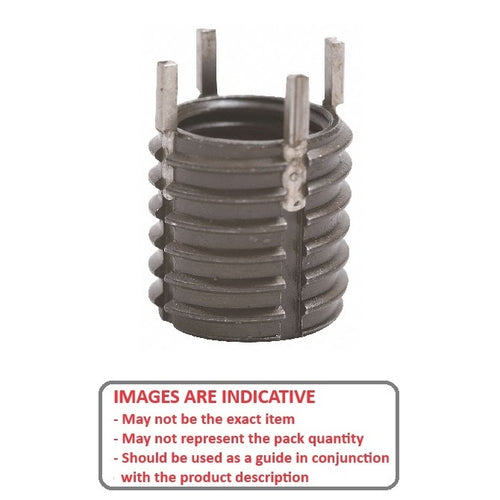

Thread Repair - Inserts - KeylockingKeylocking Inserts Thread Repair. Steel or 303 Stainless Steel as indicated in the tables. Also known as keenserts.
- Steel or 303 Stainless Steel as indicated in the tables
- Maximum strength and reliability.
- Positive mechanical lock against rotation:.
- The insert kees are driven down into the tapped threads of the parent material during installation to securely lock the insert against rotation.
- Inserts with internal thread lock are designed to securely lock a bolt when it is entered into the insert only a few turns.
Product Data

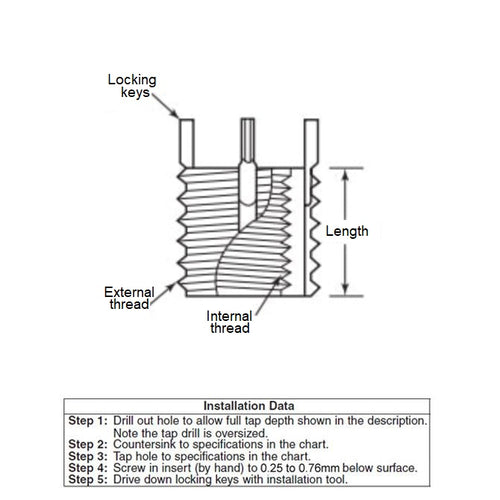

- Internal Thread : M12x1.25 (Extra Fine)
- External Thread M18 x1.5
- Length
18.000
mm
(Equiv. 0.709 in.) - Tap Drill Diameter 16.75 mm
- Countersink Diameter 18.250 mm
- Locking Keys 4
- Tapped Hole Depth 20.500 mm
- Removal Drill Size 15.500 mm
- Removal Drill Depth 4.750 mm
- Installation Tool KLI-64769RS
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- KLI-66169
- KLI66169
