KLI-120M-160-16-SS - Datasheet

MBA

Category Information

Thread Repair - Inserts - Keylocking

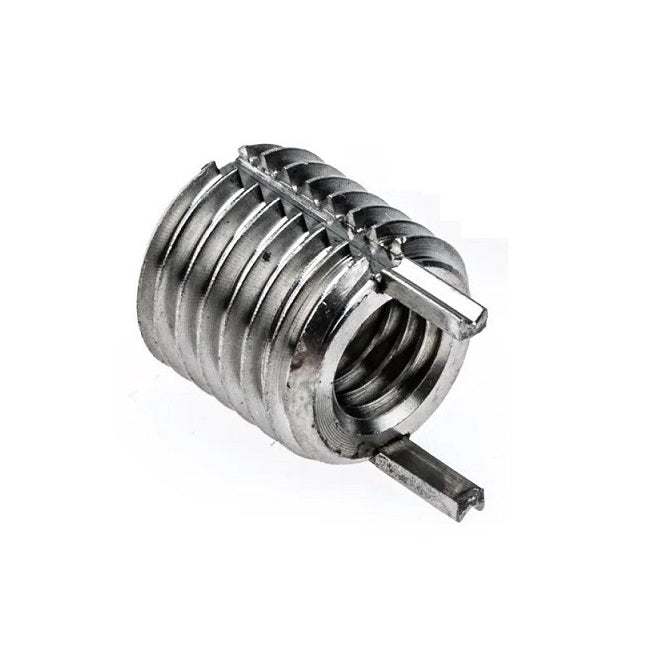

Keylocking Inserts Thread Repair. Steel or 303 Stainless Steel as indicated in the tables. Also known as keenserts.

  • Steel or 303 Stainless Steel as indicated in the tables
  • Maximum strength and reliability.
  • Positive mechanical lock against rotation:.
  • The insert kees are driven down into the tapped threads of the parent material during installation to securely lock the insert against rotation.
  • Inserts with internal thread lock are designed to securely lock a bolt when it is entered into the insert only a few turns.

Product Data

  • Internal Thread : M12 (12x1.75mm)
  • External Thread M16 x1.5
  • Length 16.00 mm
    (Equiv. 0.63 in.)
  • Tap Drill Diameter 14.75 mm
  • Countersink Diameter 16.25 mm
  • Locking Keys 4
  • Tapped Hole Depth 17.50 mm
  • Removal Drill Size 13.50 mm
  • Removal Drill Depth 4.75 mm
  • Installation Tool KLI-64769RS
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 93715A635
  • KI-12
  • KLI66356
  • KLI-66356
  • KI12
